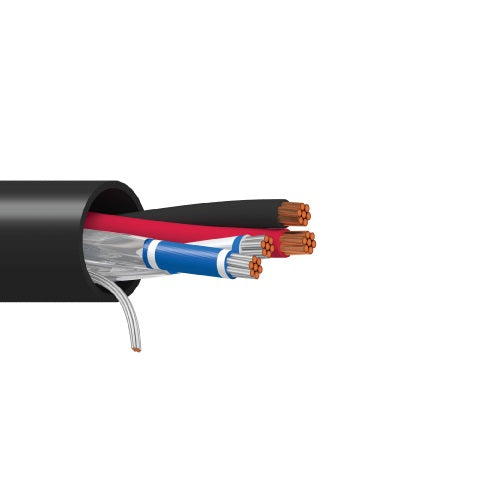

Belden 6381MD 24 AWG 1 Pair Tinned Copper 18 AWG 2 Pair Bare Copper 300V OSDP Reader Cable

Description:-

OSDP Reader Cable, 1 Pair 24 AWG stranded (7x32) tinned copper (data) with foam FEP insulation, Beldfoil shield w/ drain, 2 Conductor 18 AWG stranded (7x26) Bare copper conductor (power) Plenum, Flamarrest.

Insulation:-

Element: Data Pair(s)
• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nom. Thickness: 0.025 in (0.64 mm)
• Nom. Insulation Diameter: 0.074 in (1.9 mm)

Element: Power Pair(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.065 in (1.7 mm)

Inner Shield:-

Element: Data Pair(s)
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Element: Power Pair(s)
Unshielded

Outer Jacket:-

• Material: Flamarrest
• Nom. Thickness: 0.020 in (0.51 mm)
• Nom. Diameter: 0.215 in (5.46 mm)
• Overall Cable Diameter (Nominal): 0.215 in (5.46 mm)

Standards:-

• UL Voltage Rating: 300 V
• Nom. Characteristic Impedance: 120 Ohm
• Operating Temperature Range: -20°C to +60°C

Applications:-

• OSDP Readers, RS-485, Serial Data, Access Control

Specifications:-

Element: Data Pair(s)
• Size (AWG): 24
• No. of Pairs: 1
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Twisted Pair Configuration

Element: Power Pair(s)
• Size (AWG): 18
• No. of Pairs: 2
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Part Number: 6381MD
