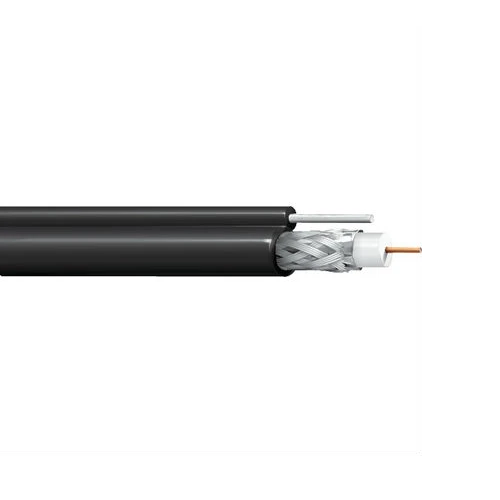

Belden 1839AC 18 AWG 1 Conductor Solid Bare Copper 300V DBS Coax Cable

Description:-

Series 6, 18 AWG solid 0.040" bare copper conductor, gas-injected foam polyethylene insulation, Duobond II plus an aluminum braid shield (60% coverage), 0.045" bare copper-covered steel static ground, PVC jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.18 in
• Gas Injected

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duofoil

• Layer: 2
• Shield Type: Braid
• Material: Aluminum
• Coverage: 60%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.27 x 0.405 in

Construction and Dimensions:-

• Static Ground Diameter: 0.045 in
• Static Ground: BCCS - Bare Copper Covered Steel

Standards:-

• Series Type: 6
• RG Type: 6/U Type
• UL Voltage Rating: 300 V RMS
• Nominal Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -40°C To +80°C

Specifications:-

• Size (AWG): 18
• No. of Conductors: 1
• Stranding: Solid
• Nominal Diameter: 0.04 in
• Conductor Material: BC - Bare Copper
• Corrosion Resistance
• Part Number: 1839AC
