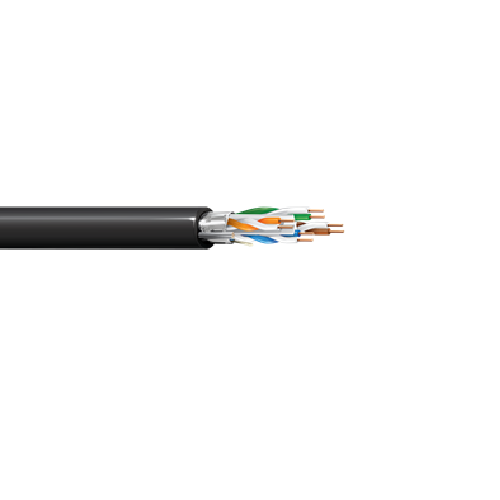

Belden 7970A 22 AWG 4 Pair Solid Bare Copper Industrial Ethernet Cat 6 600V DataTuff Cable

Description:-

Industrial Ethernet Cat 6, 4 Bonded-Pair 22 AWG (Solid) Bare Copper, PP Insulation, X-spline, Overall Beldfoil Shield, PVC Jacket, PLTC, CMR, CMX Outdoor.

Insulation:-

• Material: PO - Polyolefin

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper

Inner Jacket:-

• Separator: Center Member (Patented X-Spline)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.385 in (9.78 mm)
• Overall Cable Diameter (Nominal): 0.385 in (9.78 mm)

Standards:-

• Operating Temperature Range: -40°C To +90°C
• UL Voltage Rating: 300 V (PLTC, CMR/CMX-Outdoor), 600 V (AWM)

Applications:-

• Power-limited tray, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc

Specifications:-

• Size (AWG): 22
• No. of Pairs: 4
• Stranding: Solid
• Data Category: Category 6
• Conductor Material: BC - Bare Copper
• Part Number: 7970A
