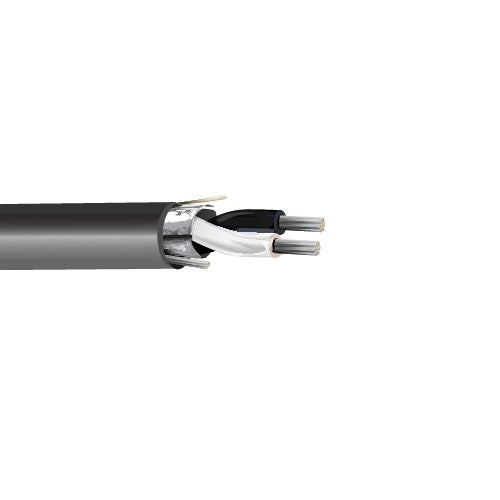

Belden 6540FD 22 AWG 1 Pair 7x30 Stranding Tinned Copper 300V OSDP Reader Cable

Description:-

OSDP Reader Cable, 1 Pair 22 AWG stranded (7x32) tinned copper (data) with foam FEP insulation, Beldfoil shield w/ drain, with Flamarrest insulation, Plenum, Flamarrest.

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nom. Thickness: 0.023 in.

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Outer Jacket:-

• Material: Flamarrest
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.177 in (4.50 mm)
• Overall Cable Diameter (Nominal): 0.177 in (4.50 mm)

Standards:-

• UL Voltage Rating: 300 V
• Nom. Characteristic Impedance: 120 Ohm
• Operating Temperature Range: -20°C to +60°C

Applications:-

• OSDP Readers, RS-485, Serial Data, Access Control

Specifications:-

• Size (AWG): 22
• No. of Pairs: 1
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 6540FD
