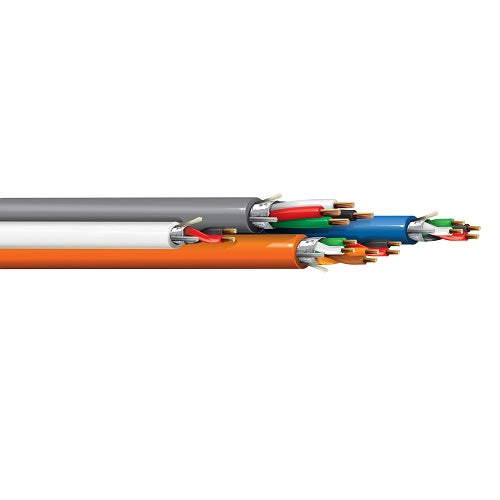

Belden 558ANH 22 AWG 7x30 Stranding 18 AWG 7x26 Stranding Bare Copper 300V Access Control Cable

Description:-

Access Control Cable, Riser-CMR, 3-22 AWG pairs, 4-18 AWG conductors, 4-22 AWG conductors, 2-22 AWG conductors, all conductors stranded bare copper with polyolefin insulation. Each cable has an overall Beldfoil shield and LSZH jacket Banana Peel No overall jacket.

Insulation:-

Element: Card Reader: Pair(s)
• Material: PP - Polypropylene
• Nom. Thickness: 0.0085 in (0.22 mm)
• Nom. Insulation Diameter: 0.045 in (1.1 mm)

Element: Door Contact: Conductor(s)
• Material: PP - Polypropylene
• Nom. Thickness: 0.0085 in (0.22 mm)
• Nom. Insulation Diameter: 0.045 in (1.1 mm)

Element: REX/Spare: Conductor(s)
• Material: PP - Polypropylene
• Nom. Thickness: 0.0085 in (0.22 mm)
• Nom. Insulation Diameter: 0.045 in (1.1 mm)

Element: Lock Power: Conductor(s)
• Material: PO - Polyolefin
• Nom. Thickness: 0.0085 in (0.22 mm)
• Nom. Insulation Diameter: 0.062 in (1.6 mm)

Inner Shield:-

Element: Card Reader: Pair(s)
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Element: Door Contact: Conductor(s)
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper

Element: REX/Spare: Conductor(s)
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (19x34) TC - Tinned Copper

Element: Lock Power: Conductor(s)
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (7x28) TC - Tinned Copper

Inner Jacket:-

Element: Card Reader: Pair(s)
• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Thickness: 0.035 in (0.89 mm)
• Nom. Diameter: 0.252 in (6.40 mm)

Element: Door Contact: Conductor(s)
• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Thickness: 0.035 in (0.89 mm)
• Nom. Diameter: 0.165 in (4.19 mm)

Element: REX/Spare: Conductor(s)
• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Thickness: 0.035 in (0.89 mm)
• Nom. Diameter: 0.195 in (4.95 mm)

Element: Lock Power: Conductor(s)
• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Thickness: 0.035 in (0.89 mm)
• Nom. Diameter: 0.233 in (5.92 mm)

Outer Jacket:-

• Nom. Diameter: 0.493 in (12.5 mm)
• Outer Jacket1 Table Notes: Banana Peel
• Overall Cable Diameter (Nominal): 0.493 in (12.5 mm)

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C to +105°C

Applications:-

• Access Control, Security System, Power Limited Controls

Specifications:-

Element: Card Reader: Pair(s)
• Size (AWG): 22
• No. of Pairs: 3
• Stranding: 7x30
• Conductor Material: BC - Bare Copper

Element: Door Contact: Conductor(s)
• Size (AWG): 22
• No. of Conductors: 2
• Stranding: 7x30
• Conductor Material: BC - Bare Copper

Element: REX/Spare: Conductor(s)
• Size (AWG): 22
• No. of Conductors: 4
• Stranding: 7x30
• Conductor Material: BC - Bare Copper

Element: Lock Power: Conductor(s)
• Size (AWG): 18
• No. of Conductors: 4
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Part Number: 558ANH
