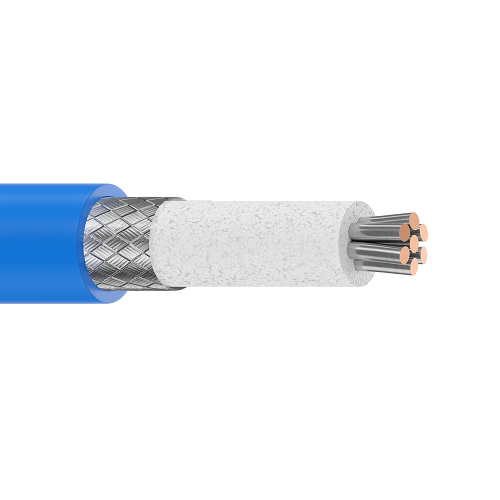

Belden 7500A 30 AWG 1 Conductor 7x38 Stranding Tinned Copper Alloy 75 Ohm MachFlex Cable

Description:-

30 AWG (7x38) Tinned Alloy, Foam PE Insulation, Overall Tinned Copper Braid (95%) Shield, PVC Outer Jacket, High Flex, AWM 1354.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.056 in (1.4 mm)

Outer Shield:-

• Shield Type: French Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.110 in (2.79 mm)
• Overall Cable Diameter (Nominal): 0.110 in (2.79 mm)

Standards:-

• UL Voltage Rating: 30 V (UL AWM 1354)
• Nom. Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -35°C to +80°C

Applications:-

• Automation, Robotics, Vision Control

Specifications:-

• Size (AWG): 30
• No. of Conductors: 1
• Stranding: 7x38
• Nom. Diameter: 0.012 in
• Conductor Material: TCA - Tinned Copper Alloy
• Part Number: 7500A
