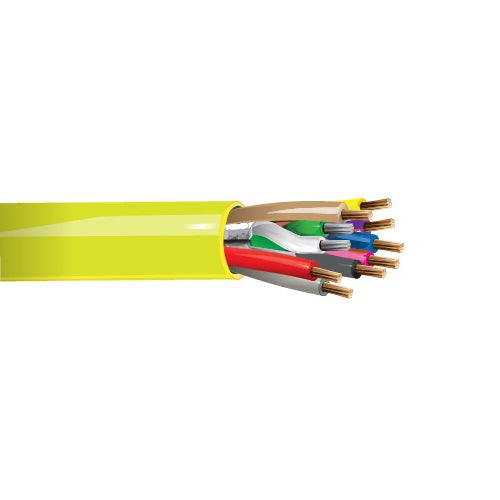

Belden 6408MD 22 AWG 1 Pair Tinned Copper 20 AWG 8 Conductor Bare Copper 300V OSDP Access Control Cable

Description:-

1 Pair 22 AWG Shielded Pair (OSDP) + 8 Conductor 20 AWG Unshielded CMP.

Insulation:-

Element: Data Pair(s)
• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Thickness: 0.025 in (0.64 mm)

Element: Power
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.009 in (0.23 mm)

Inner Shield:-

Element: Data Pair(s)
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper
• Drain Inside the Foil

Element: Power
Unshielded

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.290 in (7.37 mm)
• Overall Cable Diameter (Nominal): 0.290 in (7.37 mm)

Standards:-

• UL Voltage Rating: 300 V
• Nom. Characteristic Impedance: 120 Ohm
• Operating Temperature Range: 0°C to +75°C

Applications:-

• Server Cabinet Lock - Data Centers OSDP

Specifications:-

Element: Data Pair(s)
• Size (AWG): 22
• No. of Pairs: 1
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• 1 Pair 120 Ohm - OSDP Reader

Element: Power
• Size (AWG): 20
• No. of Conductors: 8
• Stranding: 7x28
• Conductor Material: BC - Bare Copper
• 8 Conductors For Molex: Power, Lock Power, Tamper
• Part Number: 6408MD
