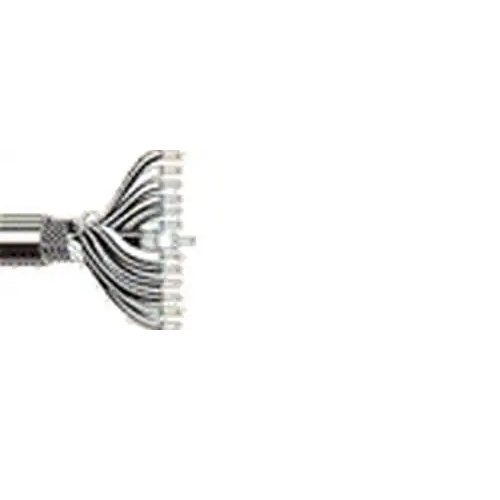

Belden 9262 22 AWG 1 Conductor 7x30 Stranding Tinned Copper 300V Composite Audio Coax Cable

Description:-

Composite, 22 AWG Coax TC, stranded (7x30), BC braid shield 95% coverage, 12 Cond. 20 AWG TC, stranded (7x28), overall TC braid shield 80% coverage, PVC outer jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.146 in

• Material: PVC - Polyvinyl Chloride
• Nominal Diameter: 0.07 in

Inner Shield:-

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Shield:-

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 80%

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.208 in

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.46 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nom. Characteristic Impedence: 75 Ohm
• Operating Temperature Range: -30°C To +75°C

Specifications:-

• Size (AWG): 22
• No. of Coax: 1
• Stranding: 7x30
• Nominal Diameter: 0.031 in
• Conductor Material: TC - Tinned Copper

• Size (AWG): 20
• No. of Conductor: 12
• Stranding: 7x28
• Nominal Diameter: 0.038 in
• Conductor Material: TC - Tinned Copper
• Part Number: 9262
