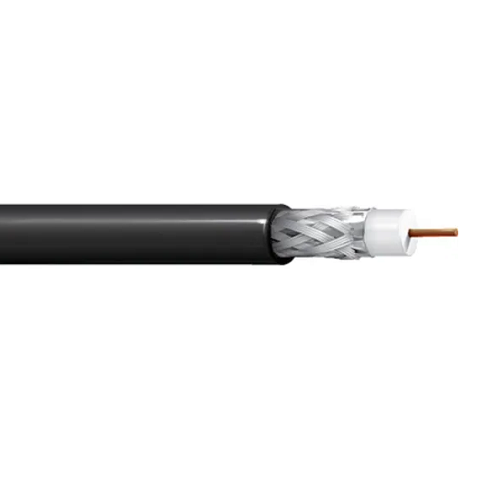

Belden 7808WB 15 AWG 1 Conductor Solid Bare Copper 300V Wireless Transmission Coax Cable Cable

Description:-

50 Ohm Wireless Transmission Cable, RF 240, RG58, 15 AWG Solid Bare Copper Conductor, PE Insulation, Duofoil II + 95% Tinned Copper Braid Shield, Flooded, PE Jacket, Waterblocked.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.15 in
• Gas Injected

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duofoil

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

• Tape is bonded to dielectric, PO - Polyolefin

Outer Jacket:-

• Material: PE - Polyethylene
• Nom. Diameter: 0.24 in

Standards:-

• RG Type: 58/X Type
• UL Voltage Rating: 300 V RMS
• Nominal Characteristic Impedance: 50 Ohm
• Operating Temperature Range: -20°C To +75°C

Applications:-

• Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)

Specifications:-

• Size (AWG): 15
• No. of Conductor: 1
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 7808WB
