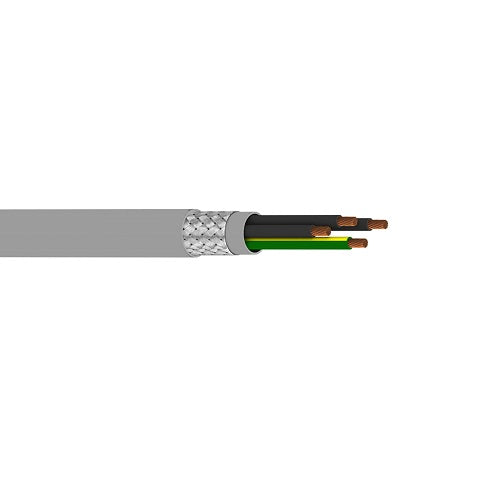

Belden 73604WS 16 AWG 4 Conductor 26x30 Stranding Bare Coppe 600V MachFlex Cable

Description:-

MachFlex for Moderate Flex, 4 Conductor 16 AWG (26x30) Bare Copper, PVC Insulation, Overall Tinned Copper Braid (85%) Shield, PVC Inner Jacket, PVC Outer Jacket, AWM 2587 CLASS K.

Insulation:-

Element: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.022 in (0.56 mm)
• Nom. Insulation Diameter: 0.104 in (2.64 mm)

Element: Ground
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.022 in (0.56 mm)
• Nom. Insulation Diameter: 0.104 in (2.64 mm)

Outer Shield:-

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.030 in (0.76 mm)
• Nom. Diameter: 0.318 in (8.08 mm)
• Separator: Paper Tape

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.035 in (0.89 mm)
• Nom. Diameter: 0.416 in
• Overall Cable Diameter (Nominal): 0.416 in (10.6 mm)
• Separator: Paper Tape

Standards:-

• UL Voltage Rating: 600 V (AWM 2587)
• Voltage Rating: 600 V (CSA AWM I/II A/B)
• Operating Temperature Range: -40°C To 90°C (Static), -5°C To 90°C (Flexing)

Specifications:-

Element: Conductor(s)
• Size (AWG): 16
• No. of Conductors: 3
• Stranding: 26x30
• Conductor Material: BC - Bare Copper

Element: Ground
• Size (AWG): 16
• No. of Conductors: 1
• Stranding: 26x30
• Conductor Material: BC - Bare Copper
• Part Number: 73604WS
