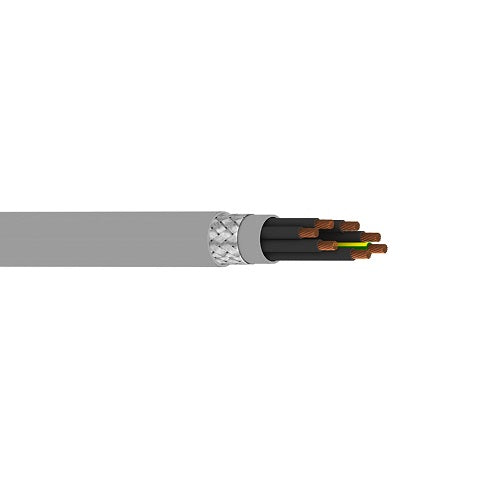

Belden 73607WS 16 AWG 7 Conductor 26x30 Stranding Bare Coppe 600V MachFlex Cable

Description:-

MachFlex for Moderate Flex, 7 Conductor 16 AWG (26x30) Bare Copper, PVC Insulation, PVC Outer Jacket, AWM 2587 CLASS K.

Insulation:-

Element: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nominal Diameter: 0.104 in
• Nominal Wall Thickness: 0.022 in

Element: Ground
• Material: PVC - Polyvinyl Chloride

Outer Shield:-

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.380 in
• Nominal Wall Thickness: 0.030 in

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.484 in
• Nominal Wall Thickness: 0.035 in

Standards:-

• UL Voltage Rating: 600V
• Operating Temperature Range: -40°C To 90°C (Static), -5°C To 90°C (Flexing)

Specifications:-

Element: Conductor(s)
• Size (AWG): 16
• No. of Conductors: 6
• Stranding: 26x30
• Conductor Material: BC - Bare Copper

Element: Ground
• Size (AWG): 16
• No. of Conductors: 1
• Stranding: 26x30
• Conductor Material: BC - Bare Copper
• Part Number: 73607WS
