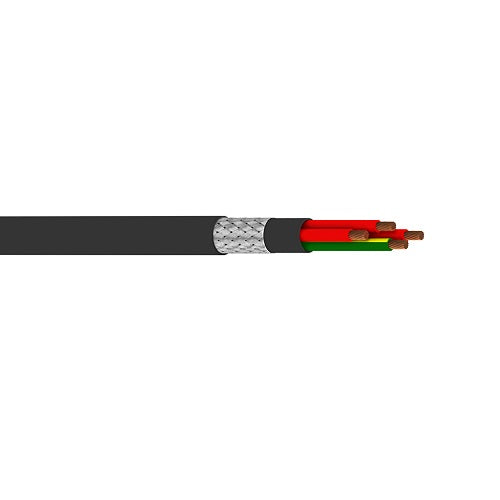

Belden 77404WS 14 AWG 4 Conductor 266x38 Stranding Bare Copper 600V MachFlex Cable

Description:-

MachFlex for High Flex, 4+G Conductor 14 AWG (266(7x38)x38) Bare Copper, PVC Insulation, Overall Tinned Copper Braid (85%) Shield, PVC Inner Jacket, PVC Outer Jacket, AWM 2587.

Insulation:-

Element: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nominal Diameter: 0.124 in
• Nominal Wall Thickness: 0.022 in

Element: Ground
• Material: PVC - Polyvinyl Chloride

Outer Shield:-

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 85%

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.394 in
• Nominal Wall Thickness: 0.035 in

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.528 in
• Nominal Wall Thickness: 0.050 in

Standards:-

• UL Voltage Rating: 600 V
• Operating Temperature Range: -40°C To 90°C (Static), -5°C To 90°C (Flexing)

Specifications:-

Element: Conductor(s)
• Size (AWG): 14
• No. of Conductors: 3
• Stranding: 266x38
• Conductor Material: BC - Bare Copper

Element: Ground
• Size (AWG): 14
• No. of Conductors: 1
• Stranding: 266x38
• Conductor Material: BC - Bare Copper
• Part Number: 77404WS
