Belden 668AMD 24 AWG 7x32 Stranding 22 AWG 7x30 Stranding 18 AWG 7x26 Stranding 300V Dual OSDP Access Control Cable
Description:-

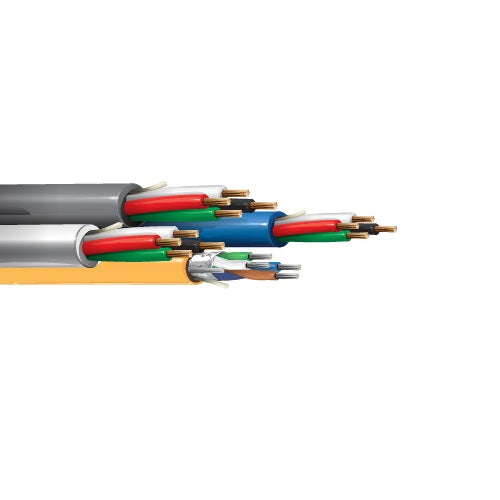

16C - Dual OSDP Access Control Cable, Plenum-CMP, #24-2 Pr., 8-18 AWG conductors, 4-22 AWG conductors, OSDP Reader Composite Cable with Foam FEP & Flamarrest insulation, Only Card Reader Data Pairs have overall Beldfoil shield, banana peel, no overall jacket - CMP.
Insulation:-
Element: Card Reader: Data Pair(s)
• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nom. Thickness: 0.021 in (0.53 mm)
Element: Door Contact: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.008 in (0.20 mm)
Element: REX/Spare: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.009 in (0.23 mm)
Element: Lock Power: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.009 in (0.23 mm)
Inner Shield:-
Element: Card Reader: Data Pair(s)
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper
Element: Door Contact: Conductor(s)
No Shield
Element: REX/Spare: Conductor(s)
No Shield
Element: Lock Power: Conductor(s)
No Shield
Inner Jacket:-
Element: Card Reader: Data Pair(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.016 in (0.41 mm)
• Nom. Diameter: 0.252 in (6.40 mm)
Element: Door Contact: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.139 in (3.53 mm)
Element: REX/Spare: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.180 in (4.57 mm)
Element: Lock Power: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.180 in (4.57 mm)
Outer Jacket:-
• Material: Banana Peel (No Overall Jacket)
• Nom. Diameter: 0.480 in (12.2 mm)
• Overall Cable Diameter (Nominal): 0.480 in (12.2 mm)
• Outer Jacket1 Table Notes: Banana Peel
Standards:-
• UL Voltage Rating: 300 V
• Operating Temperature Range: 0°C to +75°C
Applications:-
• Access Control, Security System, Power-Limited Controls, OSDP Reader
Specifications:-
Element: Card Reader: Data Pair(s)
• Size (AWG): 24
• No. of Pairs: 2
• Stranding: 7x32
• Conductor Material: TC- Tinned Coppe
• 2 Pair 120 Ohm - Dual OSDP Readers
Element: Door Contact: Conductor(s)
• Size (AWG): 22
• No. of Conductors: 4
• Stranding: 7x30
• Conductor Material: BC - Bare Copper
Element: REX/Spare: Conductor(s)
• Size (AWG): 18
• No. of Conductors: 4
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
Element: Lock Power: Conductor(s)
• Size (AWG): 18
• No. of Conductors: 4
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Part Number: 668AMD
