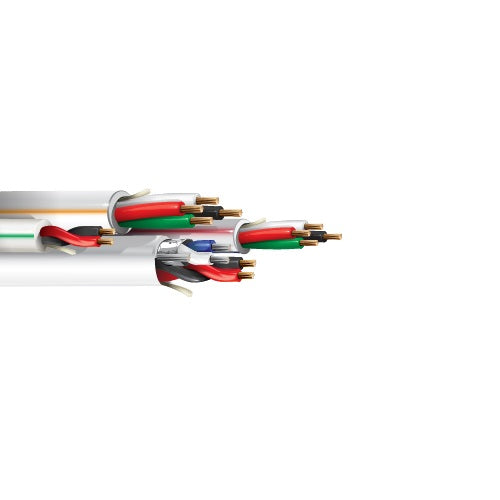

Belden 658JMS 22 AWG 7x30 Stranding 18 AWG 7x26 Stranding 300V OSDP Access Control Cable

Description:-

OSDP Access Control Cable, CMP, 14C (OSDP Reader 1Pr-22, #18-2, #18-4, #22-6), Banana Peel.

Insulation:-

Element: Card Reader: Data Pair(s)
• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nom. Thickness: 0.025 in (0.64 mm)

Element: Power
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.012 in (0.30 mm)

Element: Door Contact: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.008 in (0.20 mm)

Element: REX/Spare: Conductor(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.008 in (0.20 mm)

Inner Shield:-

Element: Card Reader: Data Pair(s)
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Element: Power
No Shield

Element: Door Contact: Conductor(s)
No Shield

Element: REX/Spare: Conductor(s)
No Shield

Inner Jacket:-

Element: Card Reader
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.020 in (0.51 mm)
• Nom. Diameter: 0.221 in (5.61 mm)

Element: Door Contact
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.120 in (3.05 mm)

Element: REX/Spare
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.139 in (3.53 mm)

Element: Lock Power
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.189 in (4.80 mm)

Outer Jacket:-

• Material: Banana Peel (No Overall Jacket)
• Nom. Diameter: 0.461 in (11.7 mm)
• Overall Cable Diameter (Nominal): 461 in (11.7 mm)
• Outer Jacket1 Table Notes: Banana Peel

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: 0°C to +75°C

Applications:-

• Access Control, Security System, Power-Limited Controls, OSDP Reader

Specifications:-

Element: Card Reader: Data Pair(s)
• Size (AWG): 22
• No. of Pairs: 1
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Data Pair - 1 Pr. 22AWG Shielded, RS-485 - Reader

Element: Power
• Size (AWG): 18
• No. of Conductors: 2
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Power Pair - 2C 18AWG Unshielded

Element: Door Contact: Conductor(s)
• Size (AWG): 22
• No. of Conductors: 2
• Stranding: 7x30
• Conductor Material: BC - Bare Copper

Element: REX/Spare: Conductor(s)
• Size (AWG): 22
• No. of Conductors: 4
• Stranding: 7x30
• Conductor Material: BC - Bare Copper

Element: Lock Power: Conductor(s)
• Size (AWG): 18
• No. of Conductors: 4
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Part Number: 658JMS
