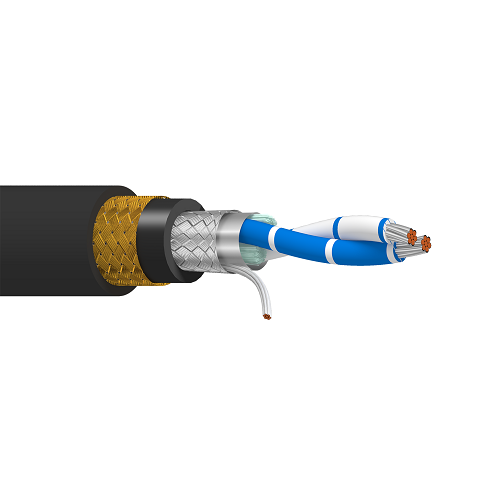

Belden 973105Z 22 AWG 1 Pair 7x30 Stranding Tinned Copper 300V RS-485 Cable

Description:-

RS-485, 120 Ohm, 1 pair 22 AWG (7x30) tinned copper Datalene insulation, Overall Foil + 65% Tinned Copper Braid, LSZH Thermoset Jacket, Bronze Braid Armor, LSZH Thermoset Jacket, CMG, PLTC, SUN RES.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Thickness: 0.029 in (0.74 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 65%

Armor:-

• Armor Type and Material: BBA - Bronze Braid Armor

Inner Jacket:-

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant, Thermoset)
• Nom. Diameter: 0.400 in (10.2 mm)

Outer Jacket:-

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant, Thermoset)
• Nom. Thickness: 0.050 in (1.3 mm)
• Nom. Diameter: 0.555 in (14.1 mm)
• Overall Cable Diameter (Nominal): 0.555 in (14.1 mm)

Standards:-

• UL Voltage Rating: 300 V (CMG, PLTC)
• Nom. Characteristic Impedance: 120 Ohm

Applications:-

• Shipboard, harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

Specifications:-

• Size (AWG): 22
• No. of Pairs: 1
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 973105Z
