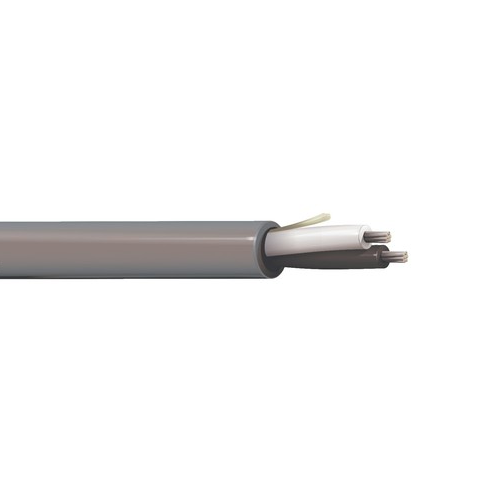

Belden 1316SB 12 AWG 1 Pair 65x30 Stranding Tinned Copper 300V Shipboard Speaker Cable

Description:-

Shipboard Speaker, 2 Conductor 12 AWG stranded (65x30) tinned copper conductors, PP insulation, CMG-LS rating, LSZH jacket.

Insulation:-

• Material: PP - Polypropylene
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.115 in mm

Outer Jacket:-

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Thickness: 0.052 in (1.3 mm)
• Nom. Diameter: 0.334 in
• Overall Cable Diameter (Nominal): 0.334 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -30°C To +105°C

Applications:-

• Speaker, Audio, Control, Intercom, ABS Type Approved, Shipboard, CMG-LS, IEEE 45 clause 23, IEC 60092-376 clause 17, 60092-351, 60754-1, 60754-2, 61034, UL1685 FT4 Loading, Limited Smoke, IEC 60332-3-22 (Category A), 60332-1, IEEE 1201

Specifications:-

• Size (AWG): 12
• No. of Pairs: 1
• Stranding: 65x30
• Conductor Material: TC - Tinned Copper
• Part Number: 1316SB
