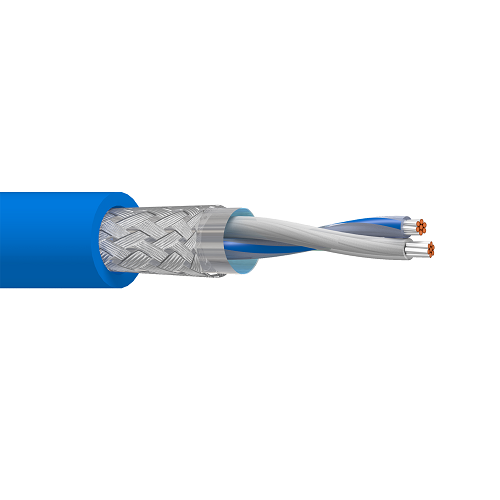

Belden SPE404 22 AWG 1 Pair Stranded Tinned Copper 300V DataTuff Cable

Description:-

DataTuff Industrial Single Pair Ethernet 40m 1 Gbps 100 Ohm 22 AWG (Stranded) Tinned Copper, PE Insulation, Overall Beldfoil+Tinned Copper Braid (80%) Shield, PVC Outer Jacket.

Insulation:-

• Material: PE - Polyethylene
• Nom. Insulation Diameter: 0.091 in (2.3 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 80%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.242 in (6.15 mm)

Standards:-

• Voltage Rating: 300 V (IEC 61156-12)
• UL Voltage Rating: 300 V (UL AWM 2095)
• Operating Temperature Range: -20°C To +80°C

Applications:-

• Noisy environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.

Specifications:-

• Size (AWG): 22
• No. of Pairs: 1
• Stranding: Stranded
• Conductor Material: TC - Tinned Copper
• Part Number: SPE404
