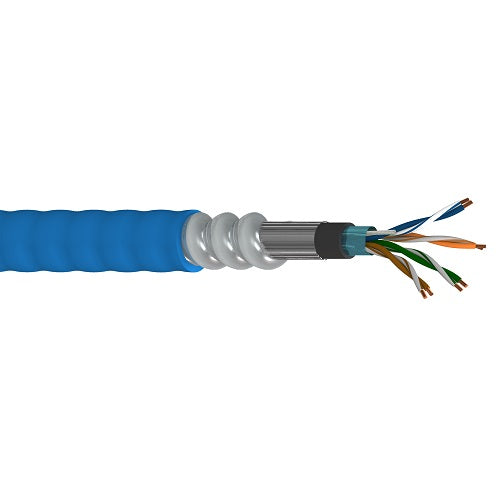

Belden 127929A 24 AWG 4 Pair Solid Bare Copper Industrial Ethernet Cat 5e 300V DataTuff Cable

Description:-

Industrial Ethernet Cat 5e, 4 Bonded-Pair 24 AWG (Solid) Bare Copper, PO Insulation, Overall Beldfoil Shield, PVC Inner Jacket, Aluminum Interlock Armor, PVC Outer Jacket, CMG CM -40C.

Insulation:-

• Material: PO - Polyolefin
• Nominal Diameter: 0.044 in

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Material Trade Name: Beldfoil

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nominal Diameter: 0.275 in

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.583 in
• Separator Material: Polyester Tape

Armor:-

• Diameter over Armoring: 0.495 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -40°C To +75°C

Applications:-

• Mining, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc.; exposure to rodent, crush, or cut-through force.

Specifications:-

• Size (AWG): 24
• No. of Pairs: 4
• Stranding: Solid
• Data Category: Category 5e
• Conductor Material: BC - Bare Copper
• Part Number: 127929A
