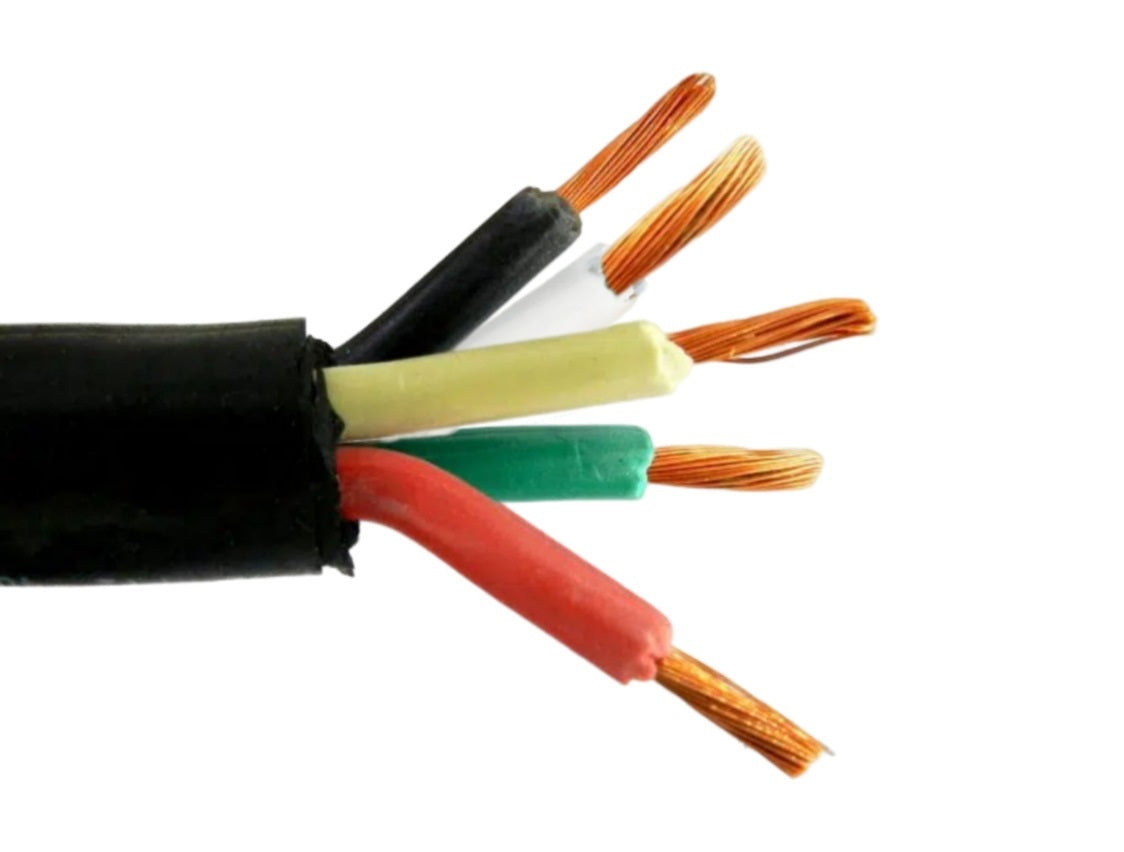

16/5 SOOW Black Portable Power Cable 600V UL CSA

16/5 SOOW Black Portable Power Cable 600V UL CSA

SKU:   Download PDF

Select a gauge:
  • 16/5 SOOW Black Portable Power Cable 600V UL CSA
Length: FT
Enter footage in the box - Cut to one length. Min 1 ft - Max 10000 ft.
Now $1.19 /FT   Web pricing policy
BEFORE   Now $1.19 /FT Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Applications Features Specifications Reviews
Product Information

16/5 SOOW Black Portable Power Cable 600V UL CSA 600V

Allowable Ampacity For 16/5 SOOW Portable Black Cord-600V: 8 Amps

Also Known As:

16/5 SOOW Portable Power Cable, 16/5 SOOW, 16/5 SOOW Power Cord, 16/5 SOOW Portable Cord, 16/5 SOOW Service Cord, 16/5 SOOW Service Cable, 16/5 SOOW Cord, 16/5 SOOW Cable, 16/5 SOOW Wire, 16/5 SOOW Flexible Power Cable, 16/5 SO Cord.

Construction:

Conductor:

Stranded, bare, and fully annealed copper conductor, Class K per ASTM B174. Suitable for harsh conditions. 5 conductors: 3 hot, 1 ground, and 1 neutral.

Insulation:

Flexible Ethylene Propylene Diene Monomer EPDM insulation resists fire, abrasion, oil, mechanical impact, sunlight, ozone, air, water, acids, alkalis, and weather.

Jacket:

 Black Chlorinated Polyethylene CPE is a thermoplastic polymer jacket that has superior resistance to chemicals and flames. The jacket is impressively flexible and durable.

Manufacturer Equivalents
Coleman : Black : 830506
General Cable : Black : 9605
Omni Cable : Black : B11605
Southwire : Black : 55823199
Wirexpress : Black : 4A-1605
Houston Wire : Black : HW25001605



Resources
Applications
SOOW is a flexible, water- and weather-resistant, portable cable built for demanding environments. Its oil-resistant jacket and EPDM insulation offer excellent protection against abrasion, chemicals, sunlight, and moisture. The cable remains intact even when exposed to hot surfaces, making it ideal for compressors, industrial machinery, push-button remotes, control systems, and water purification equipment. Commonly used in mills, marinas, mines, and industrial, commercial, and residential facilities, SOOW cable is valued for its durability and flexibility. It is rated for 600 volts and performs reliably in temperatures from -40°C to 90°C, maintaining flexibility in both hot and cold conditions.
Features
Standards:
• UL Standard 62
• National Electric Code 501.140 Class I Div. 2
• Mine Safety and Health Administration (MSHA)
• MSHA flame test – P07- KA070018- MSHA
• Canadian Standards Association (CSA) standard 22.2 No. 49
• National Electric Code Article 400
• RoHS Restriction of Hazardous Substances compliant
• OSHA The Occupational Safety and Health Administration compliant
Specifications
• Size: 16 AWG
• No. of Conductors: 5
• Conductor Stranding (No./AWG): 26/30
• Nominal Insulation Thickness: 0.030 Inches
• Nominal Jacket Thickness: 0.080 Inches
• Nominal Overall Diameter: 0.490 Inches
• New Weight lbs/kft: 149 Lbs
• Ampacity** 30°C Ambient: 8
