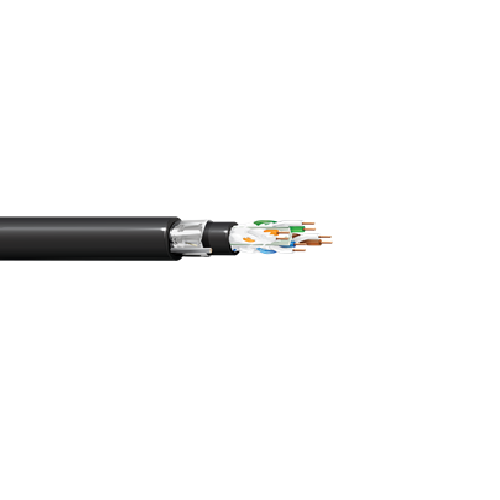

Belden IEA006 22 AWG 4 Pair Solid Bare Copper Industrial Ethernet Cat 6A 600V DataTuff Cable

Description:-

Industrial Ethernet Cat 6A, 4 Bonded-Pair 22 AWG (Solid) Bare Copper, PO Insulation, X-spline, PVC Inner Jacket, Overall Beldfoil Shield, PVC Outer Jacket, PLTC, CMR, CMX Outdoor

Insulation:-

• Material: PO - Polyolefin

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.305 in (7.75 mm)
• Separator: Center Member (Patented X-Spline)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.401 in (10.2 mm)
• Overall Cable Diameter (Nominal): 0.401 in (10.2 mm)

Standards:-

• UL Voltage Rating: 300 V (CMR), 600 V (AWM)
• Operating Temperature Range: -40°C To +75°C

Applications:-

• Industrial Ethernet Cat 6, 4 Bonded-Pair 22 AWG (Solid) Bare Copper, PO Insulation, X-spline, PVC Inner Jacket, Overall Beldfoil+Tinned Copper Braid (80%) Shield, PVC Outer Jacket, PLTC, CMR, CMX Outdoor

Specifications:-

• Size (AWG): 22
• No. of Pairs: 4
• Stranding: Solid
• Data Category: Category 6A
• Conductor Material: BC - Bare Copper
• Part Number: IEA006
