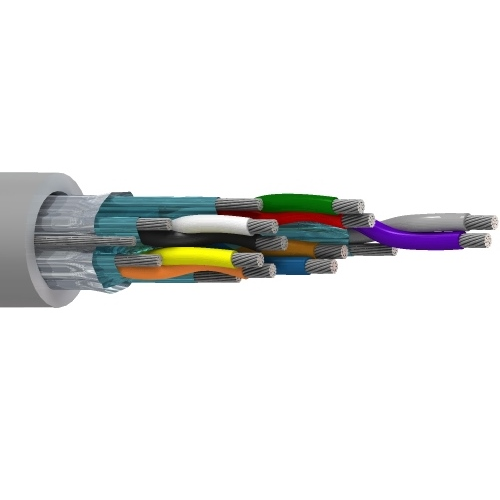

Belden 9884MN 20 AWG 5 Pair 26x34 Stranding Tinned Copper 300V SpaceMaker Cable

Description:-

SpaceMaker, 5 Pair 20 AWG (26x34) Tinned Copper, PO Insulation, Individual and Overall Beldfoil Shield, PVC Outer Jacket, AWM 2937.

Insulation:-

• Material: PP - Polypropylene
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.057 in (1.4 mm)

Inner Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (19x34) TC - Tinned Copper

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (19x32) TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.016 in (0.41 mm)
• Nom. Diameter: 0.324 in
• Overall Cable Diameter (Nominal): 0.324 in

Standards:-

• UL Voltage Rating: 300 V
• Nom. Characteristic Impedance: 47 Ohm
• Operating Temperature Range: -20°C to +80°C

Specifications:-

• Size (AWG): 20
• No. of Pairs: 5
• Stranding: 26x34
• Conductor Material: TC - Tinned Copper
• Part Number: 9884MN
