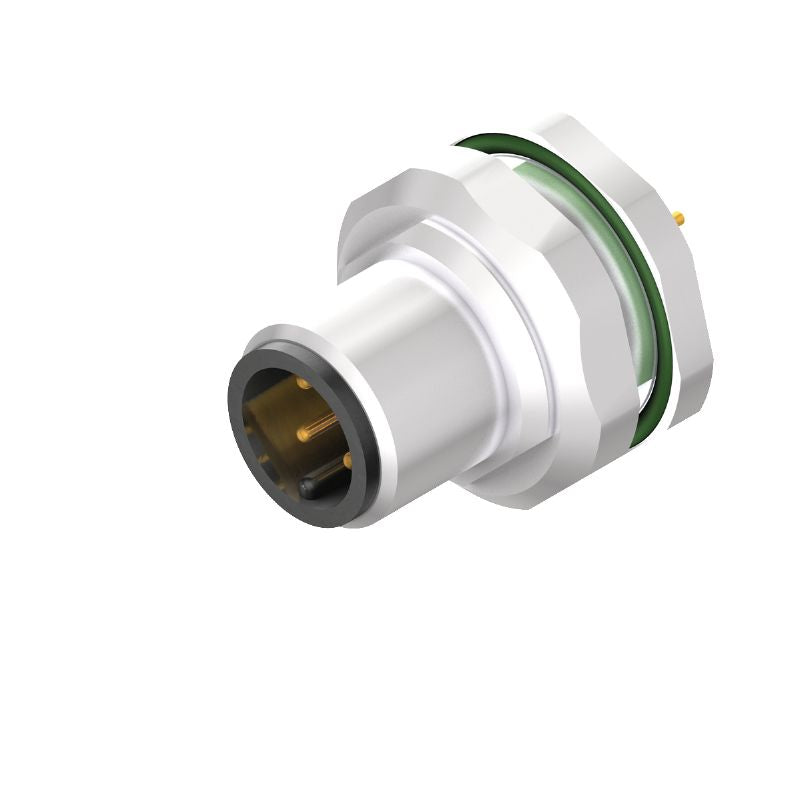

2421770000 - M12 5-Pole Connector with IP67 Rating and M16 Thread (Pack of 10)

Description:

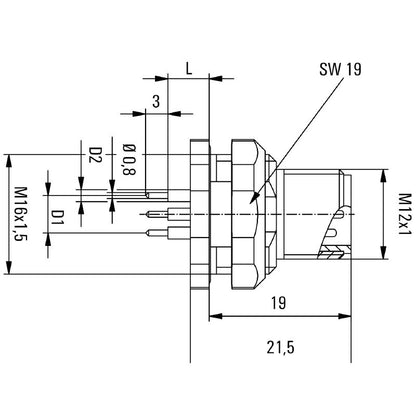

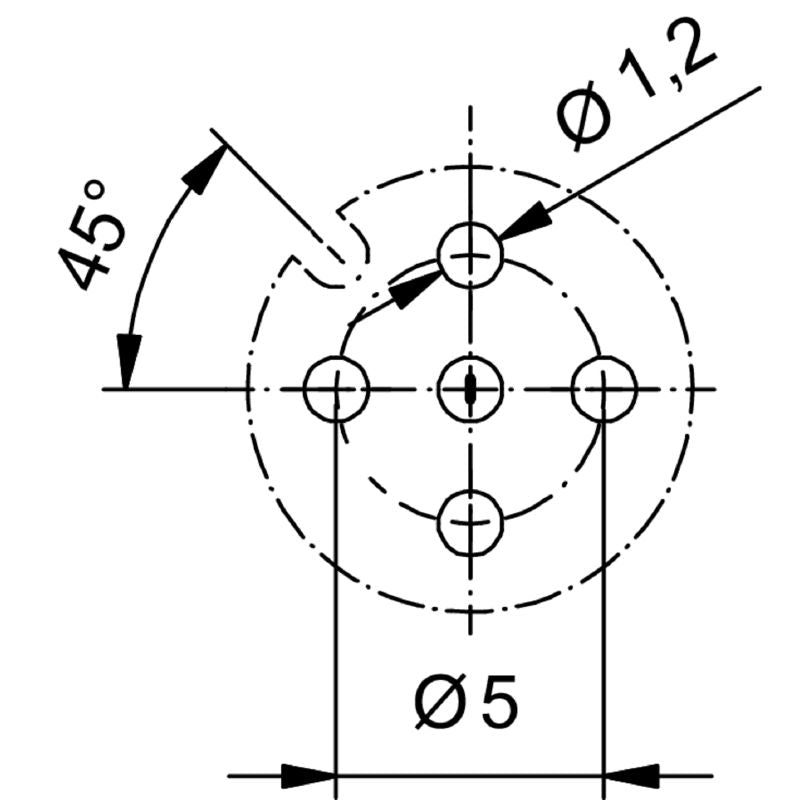

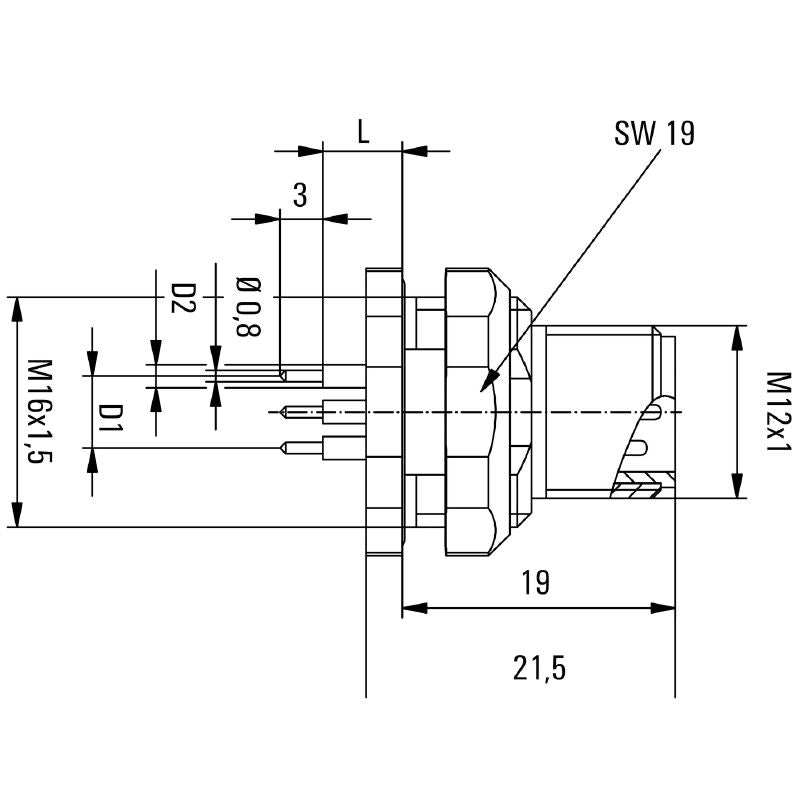

Introducing the SAIE-M12S-5-H55TL-M16 connector, a reliable electrical component equipped with integrated plugs and designed with an M12 interface This connector boasts a mounting thread size of M 16 x 15 and a configuration of 5 poles It can handle a nominal voltage of 60 V, while the rated voltage reaches up to 250 V for 4 poles and remains at 60 V for 5 poles, with a nominal current capacity of 4 A.

Constructed to withstand extreme conditions, it operates efficiently within a temperature range of -30 to 80 degrees Celsius and is rated IP67 for water and dust protection Crafted with a nickel-plated CuZn housing and featuring a gold contact surface, this connector promises long-lasting performance and reliability in various applications.

Features and Benefits:

•A-coded housing.

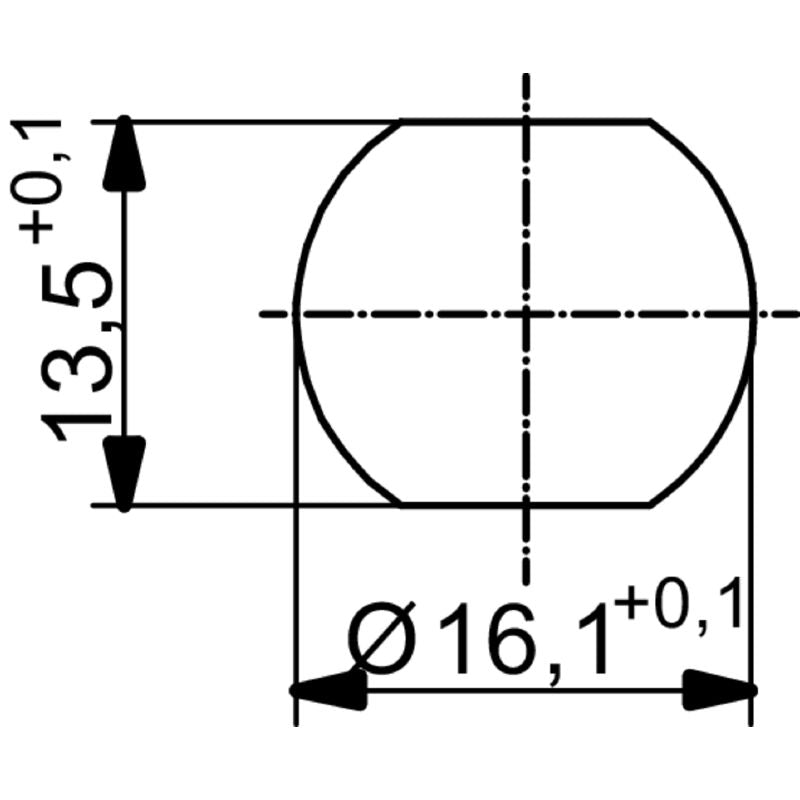

•Rear panel mounting type.

•Nickel-plated CuZn housing.

•Gold contact surface.

•Suitable for harsh environments with IP67 protection.

•Capable of operating in a temperature range of -30 to 80 °C.

•Insulation resistance of 100 MΩ.

•More than 100 plugging cycles.

Specifications:
