2421740000 - M12 Built-In Plug, M16 Thread, 4 Poles, RoHS Compliant (Pack of 10)

SKU: SKU: 2421740000 Download PDF

Variant:

2421740000 - M12 Built-In Plug, M16 Thread, 4 Poles, RoHS Compliant (Pack of 10)

Now $75.34

~~BEFORE $0.00~~ Now $75.34

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

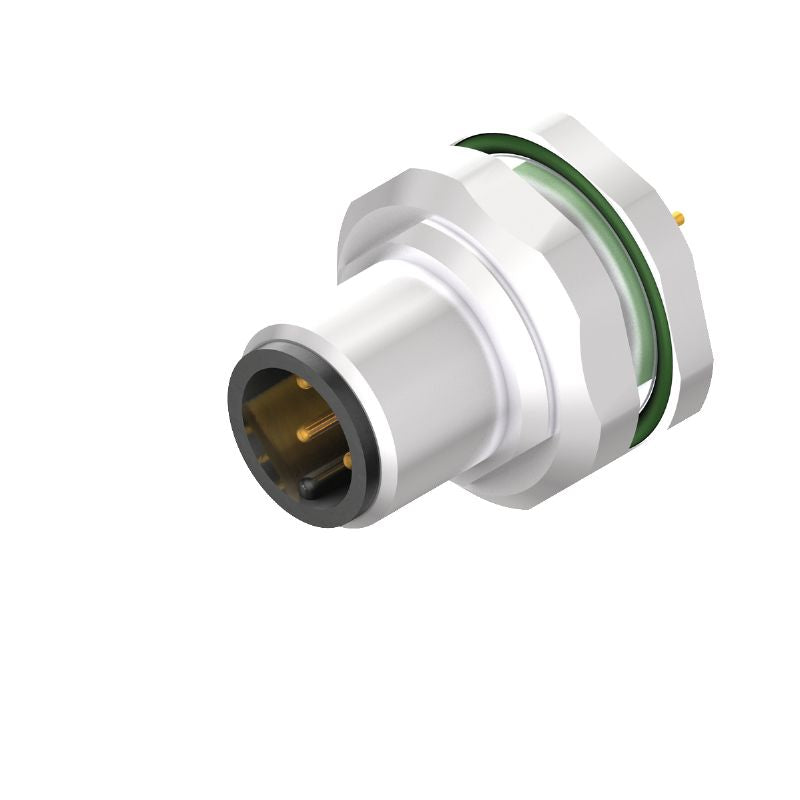

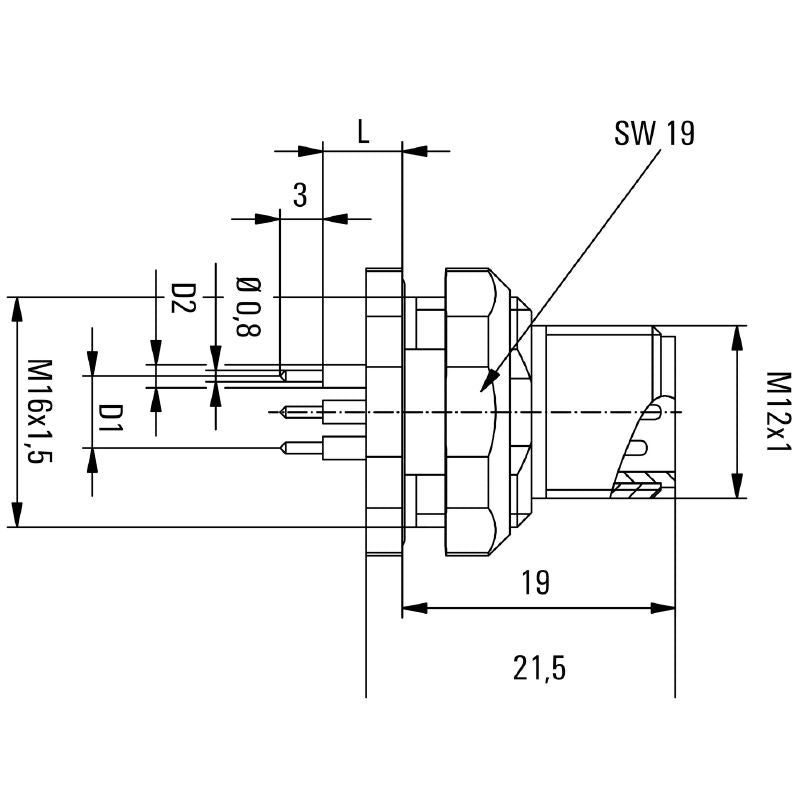

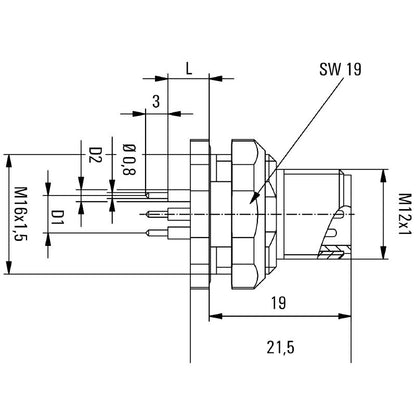

Introducing this expertly crafted built-in plug that adheres to M12 standards, featuring a precise M16 x 15 mounting thread and a robust design incorporating four poles Weighing in at only 20 grams, this product meets RoHS guidelines and boasts a range of approvals to ensure it complies with specific environmental standards Ideal for applications requiring reliable connectivity and safety.

Features and Benefits:

•A-coded connector type.

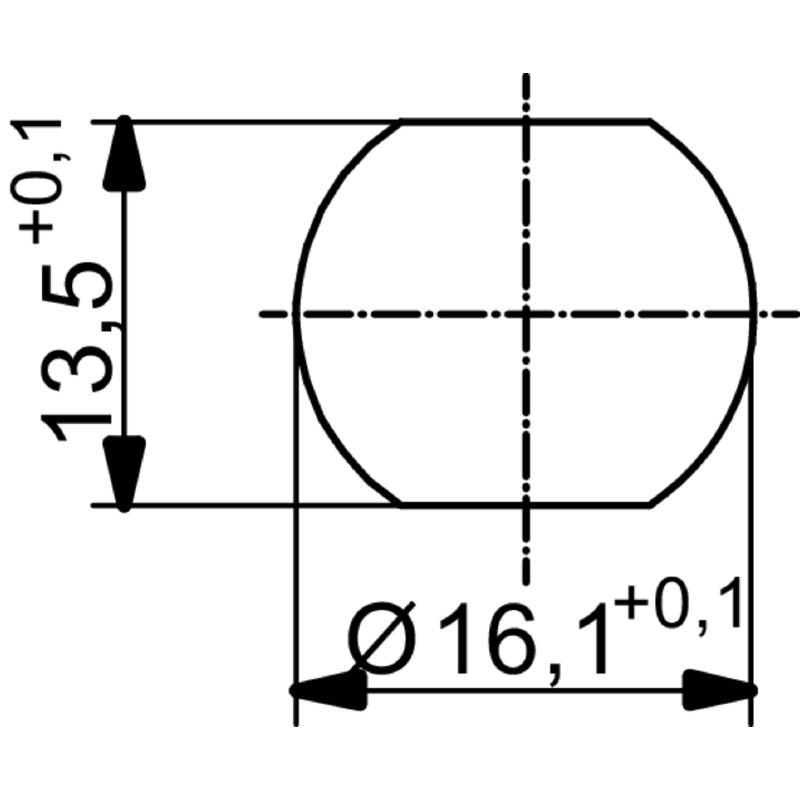

•Rear panel mounting design.

•IP67 protection grade.

•Gold contact surface.

•Rated for 250 V voltage.

•Operates within a temperature range of -30 to 80 °C.

•Supports up to 100 plugging cycles.

Specifications:

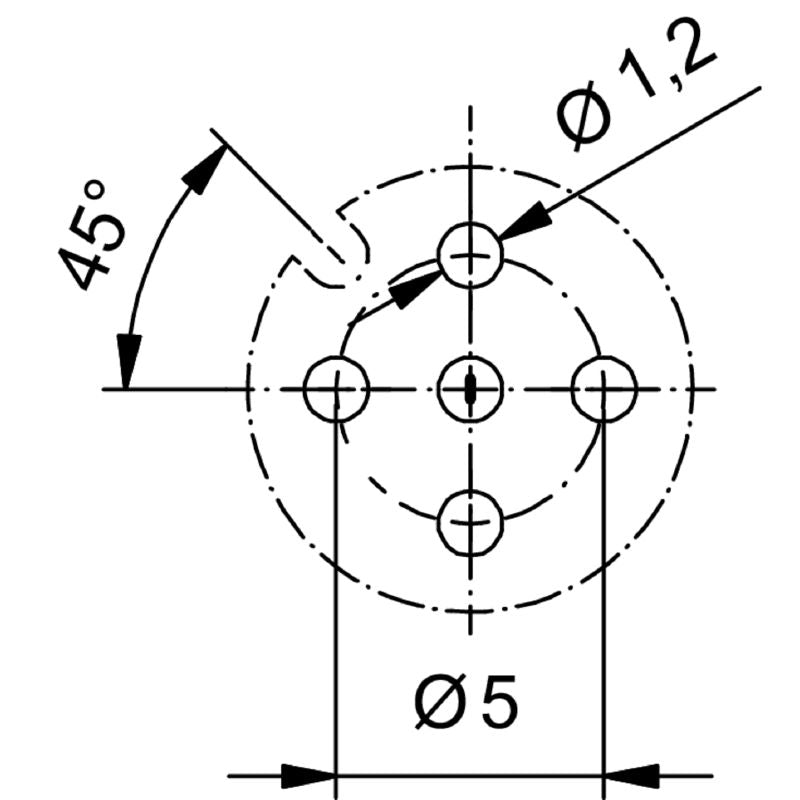

Number of poles	4
Nominal current	4 A
Rated current	4 A (4- and 5-pole) / 2 A (8-pole)
Insulation resistance	100 MΩ
Tightening torque	0.8 Nm
Mounting torque max	1.2 Nm
Pollution severity	3 (2 within the sealed area)
Housing main material	CuZn, nickel-plated
Connection thread	M12
Contact material	Cu-alloy
Plugging cycles	≥ 100
Protection degree	IP67
Temperature range	-30…80 °C
