2421680000 - M12 5-Pole Rear Panel Mount Connector, IP67 Rated (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Upgrade your connectivity with this M12 connector, engineered for rear panel installation It boasts five poles and an M12 connection thread for reliable performance Environmentally safe and compliant with RoHS standards, this connector operates at a nominal voltage of 60 V, with the ability to support a rated voltage of 250 V for 4-pole configurations, 60 V for 5 poles, and 30 V for 8 poles Designed to function seamlessly in a wide temperature range from -30 to 80 degrees Celsius, it also features an IP67 protection rating, ensuring it withstands challenging environments with ease.

Features and Benefits:

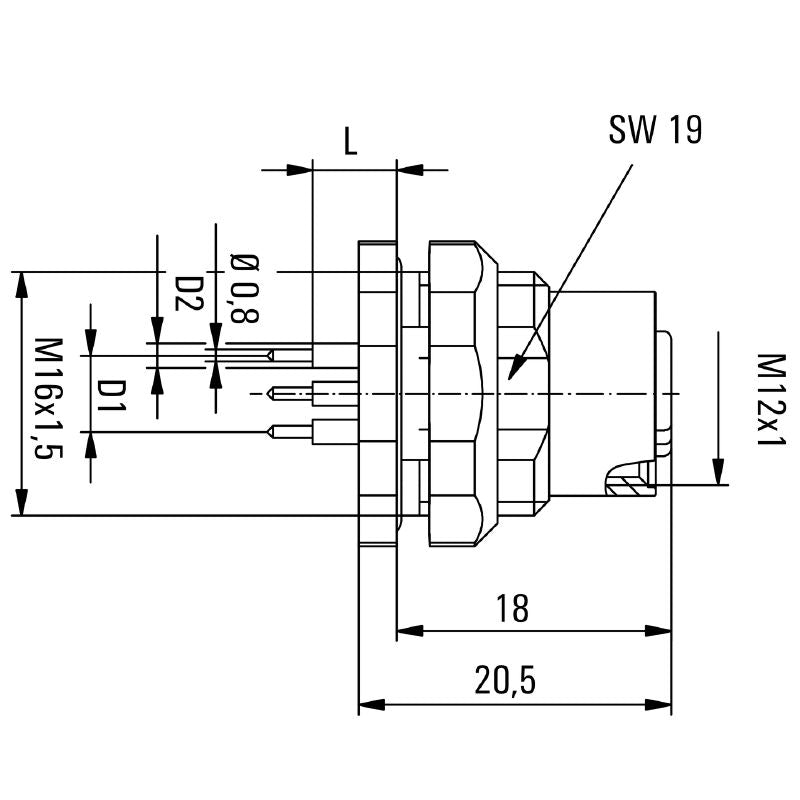

•Rear panel mounting type.

•A-coded installation standard.

•Protection degree IP67.

•Capable of withstanding ≥ 100 plugging cycles.

•Compatible with M12 connection standards.

Specifications:
