2421580000 - Durable M8 4-Pole Connector, 5.5mm Height, IP67 Rated (Pack of 10)

2421580000 - Durable M8 4-Pole Connector, 5.5mm Height, IP67 Rated (Pack of 10)

SKU: 2421580000   Download PDF

Select a Variant:
  • 2421580000 - Durable M8 4-Pole Connector, 5.5mm Height, IP67 Rated (Pack of 10)
Qty:
Now $71.48   Web pricing policy
BEFORE   $0.00 Now $71.48 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

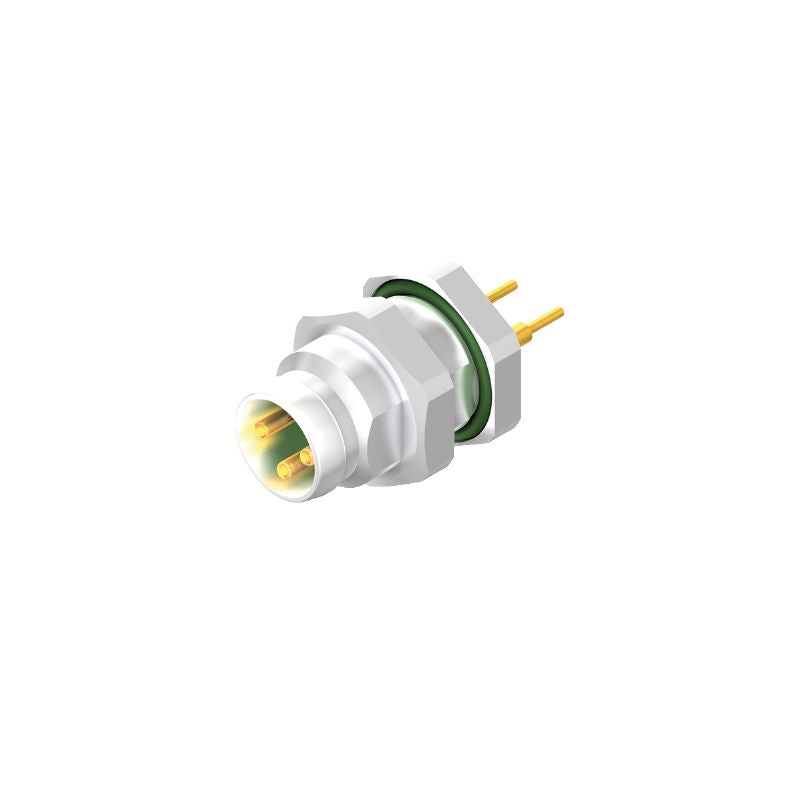

Experience dependable connectivity with the SAIE-M8S-4-H55TL, an M8 plug-in connector featuring a versatile 4-pole configuration This connector comes equipped with integrated plugs and a mounting thread of M8, allowing for easy installation at a height of just 55 mm Designed to meet RoHS exemption 6c standards, it operates efficiently in a temperature range from -30 to 80 °C With an impressive IP67 rating, this connector guarantees robust performance even in challenging conditions.

Features and Benefits:

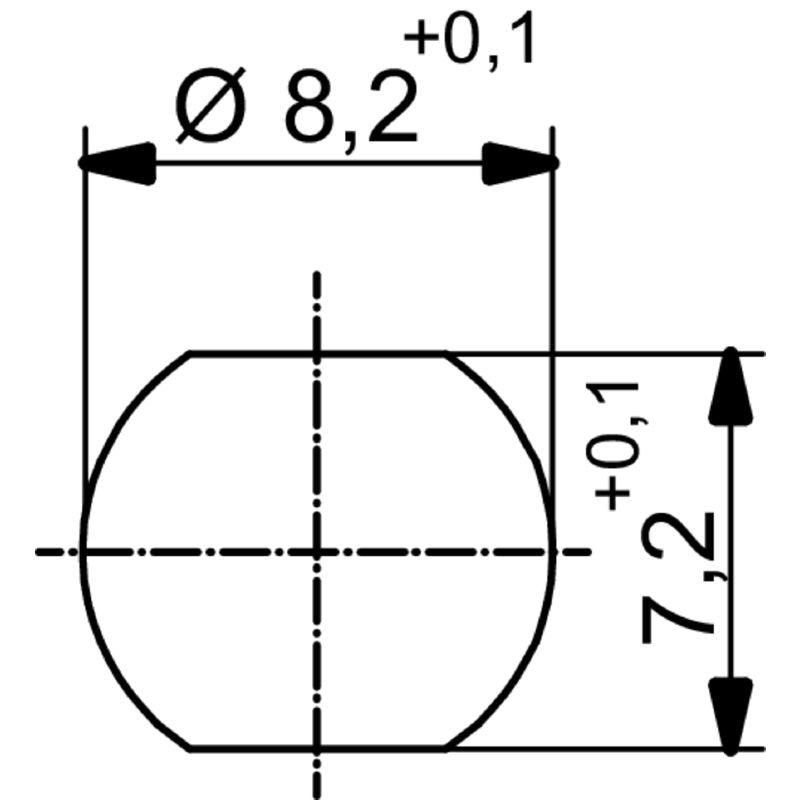

    •Rear panel mounting type.

    •Rated for a nominal voltage of 30 V.

    •Rated current of 4 A for 3-, 4-, and 5-pole configurations.

    •Contact surface made of gold (Au).

    •High insulation resistance of 100 MΩ.

    •Over 100 plugging cycles lifespan.

Specifications:

 Mounting thread M8

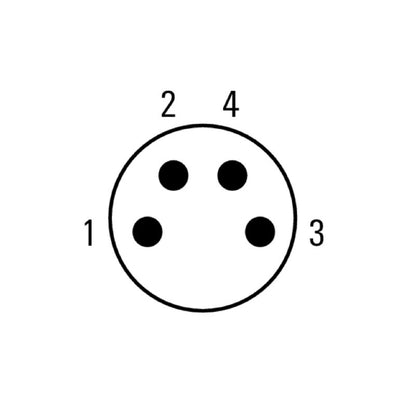

 Number of poles 4
 Nominal current 4 A
 Rated voltage 60 V (3-pole) / 30 V (4-,5- and 8-pole)
 Temperature range -30…80 °C
 Protection degree IP67
 Contact material Cu-alloy
 Tightening torque 0.5 Nm
 Mounting torque max. 0.8 Nm
 Seal material NBR
 Housing main material Nickel-plated CuZn
