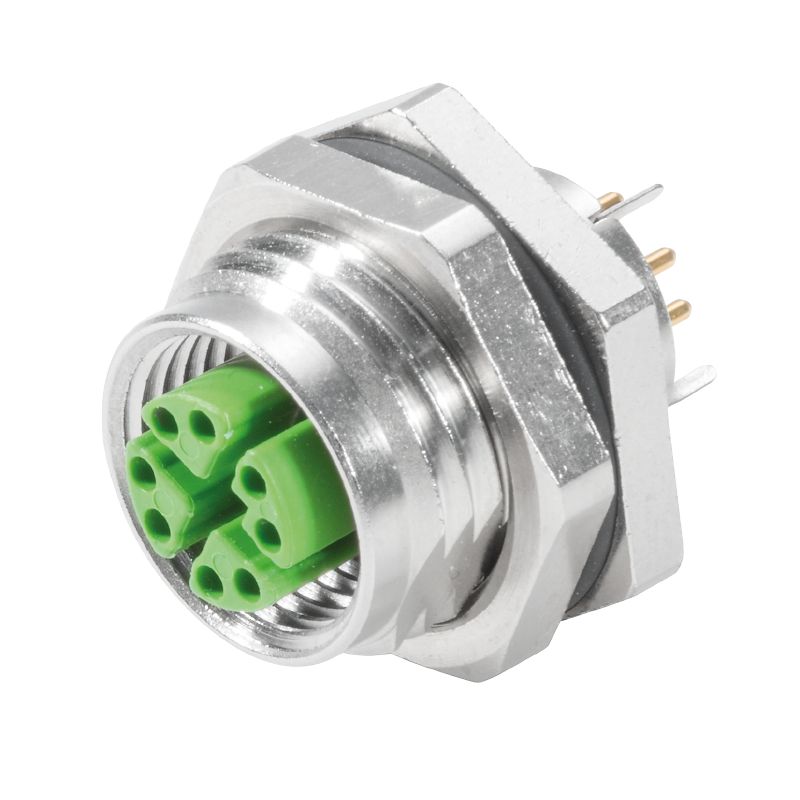

1427670000 - M12 PCB Plug-In Connector, Cat.6A, IP67 Rated (Pack of 10)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the reliability of this M12 PCB plug-in connector, designed with solder connections to ensure robust performance Adhering to the Cat6A / Class EA standards as outlined in ISO/IEC 11801 2010, this connector is crafted for superior functionality Its IP67 rating offers excellent protection against dust and water when assembled correctly, making it a dependable choice for various applications Additionally, it is compatible with reflow soldering methods and is perfectly suited for back panel mounting, enhancing its versatility across different setups.

Features and Benefits:

•X-coded for enhanced performance.

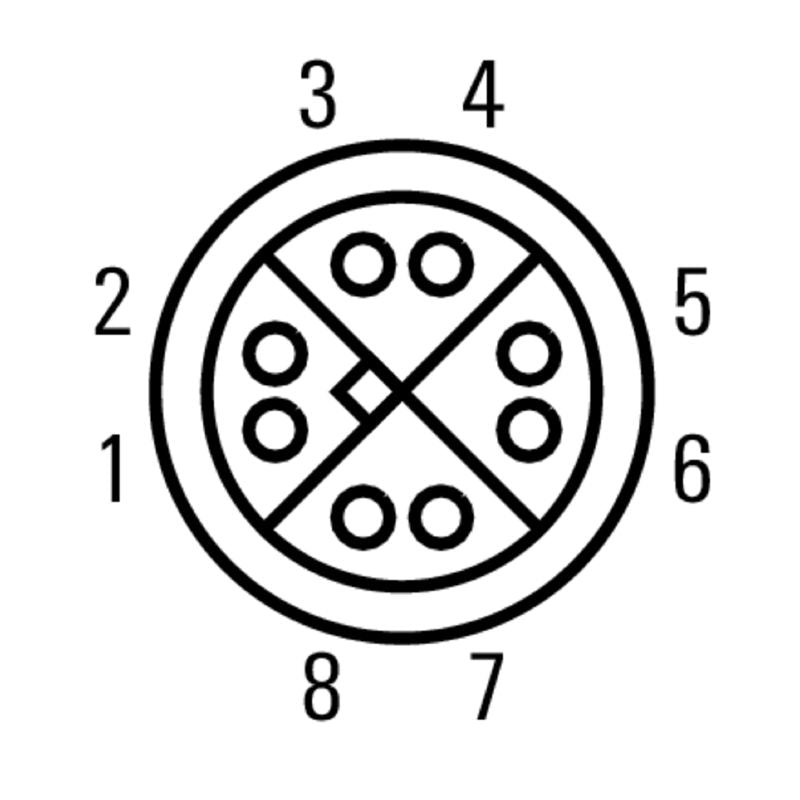

•Equipped with 8 poles.

•Suitable for nominal voltage of 48 V.

•Offers a protection degree of IP67 when securely connected.

•Contact surface is plated with gold over nickel.

•Constructed from CuZn material.

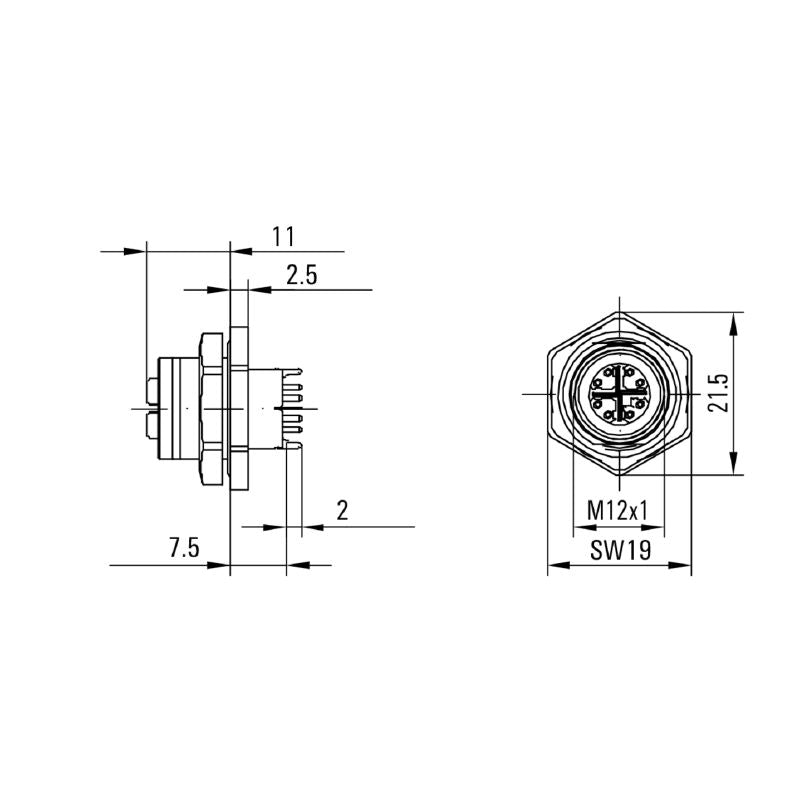

•Utilizes an M12 connection thread.

•Insulation resistance is rated at 100 MΩ.

•Designed for a minimum of 100 plugging cycles.

•Contact material is made of Cu-alloy.

•360° all-round shielding for improved reliability.
