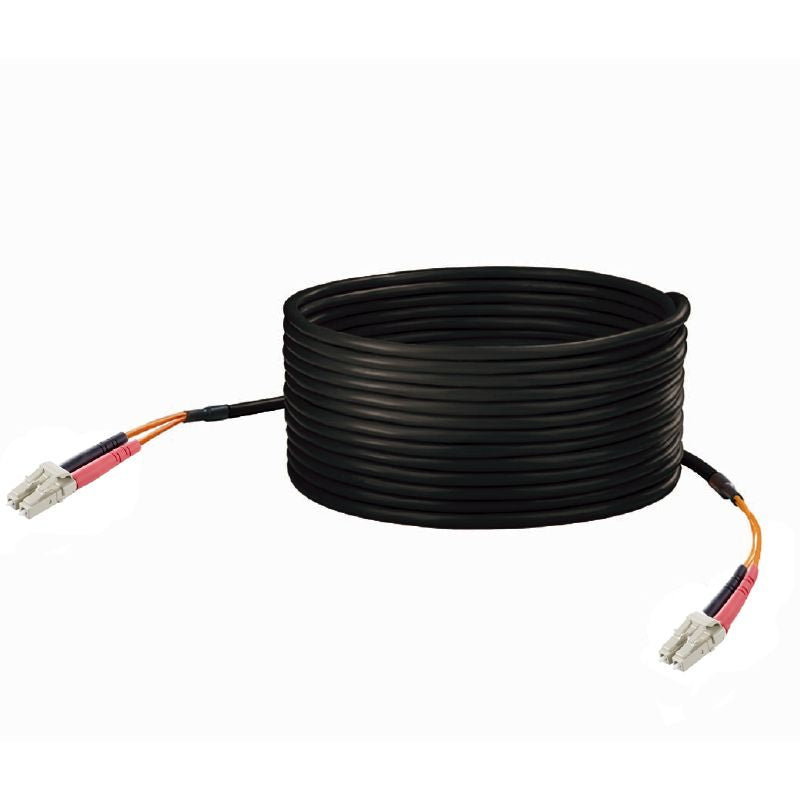

8993220000 - 50m LC-Duplex Dragline Cable, IP 20, 62.5 µm PUR

8993220000 - 50m LC-Duplex Dragline Cable, IP 20, 62.5 µm PUR

SKU: 8993220000   Download PDF

Select a Variant:
  • 8993220000 - 50m LC-Duplex Dragline Cable, IP 20, 62.5 µm PUR
Qty:
Now $359.83   Web pricing policy
BEFORE   $0.00 Now $359.83 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Experience reliability with this dragline cable featuring LC-Duplex connectors, rated at IP 20 Constructed with a durable PUR sheath, it boasts 625 µm fiber for optimal performance Measuring 50 meters in length, this cable adheres to RoHS guidelines and is engineered to operate efficiently in a diverse range of temperatures, making it suitable for various environments.

Features and Benefits:

    •Compliant with RoHS and REACH regulations.

    •Offers a bandwidth of 200 MHz*km at 850 nm and 500 MHz*km at 1300 nm.

    •Designed to withstand 100,000 bending cycles.

Specifications:

 Length 50 m
 Core diameter 62.5 µm
 Sheath diameter 6 mm
 Storage temperature -40 °C...80 °C
 Operating temperature -40 °C...80 °C
 Installation temperature -20 °C...60 °C
 Attenuation 2.7 dB/km at 850 nm, ≤ 0.5 dB/km at 1300 nm
 Insertion loss ≤ 0.4 dB
 Return loss ≥ 30 dB
 Bending radius, once only 25 mm
 Bending radius, repetitive 77 mm
 Connector standard IEC 61754-20
 Cable layout Break-out dragline
