8960670000 - 100m PUR Dragline Cable, Cat.5, -40°C to 80°C

SKU: SKU: 8960670000 Download PDF

Select a Variant:

8960670000 - 100m PUR Dragline Cable, Cat.5, -40°C to 80°C

SET THE QTY:

Now $511.71 Web pricing policy

~~BEFORE $0.00~~ Now $511.71 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing a versatile dragline cable that adheres to the Cat5 (ISO/IEC 11801) and Cat5e (TIA T568-B) specifications Crafted from durable PUR, this cable stretches an impressive 100 meters in length, making it an ideal choice for various installations It is presented in a convenient cable ring and packaged within a sturdy carton Weighing in at 5,420 grams, this cable is designed to function seamlessly within a broad temperature range of -40 °C to 80 °C, suitable for storage, operation, and installation needs.

Features and Benefits:

•Shielded.

•Halogen-free, as per IEC 60754-2.

•Excellent abrasion resistance.

•UV-resistant.

•Contains twisted pair wire cores.

•Very good resistance to oils.

•Resistant to fire propagation.

•Impervious to smoke.

•Capable of withstanding 5 million bending cycles.

•Conductive resistance is low (290 Ω/km).

Specifications:

Acceleration	5 m/s²
Bending cycles	5 Mio
Number of poles	8
Speed	180 m/min
Test voltage (wire-wire-shield)	700 V rms, 50 Hz, 1 min
Loop resistance	290 Ω/km
Operating voltage	30 V
Characteristic impedance	100 ± 15 Ω at 1–100 MHz
Transfer impedance	100 mΩ/m at 10 MHz
Sheath diameter (max)	6.8 mm
Sheath diameter (min)	6.5 mm
Wire material	Stranded tin-plated copper wire

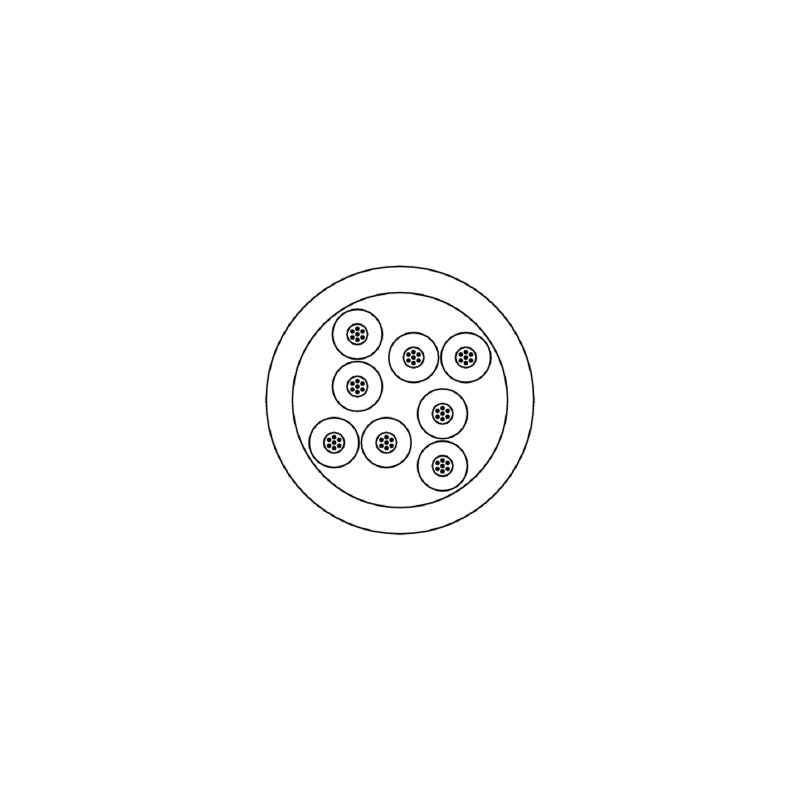

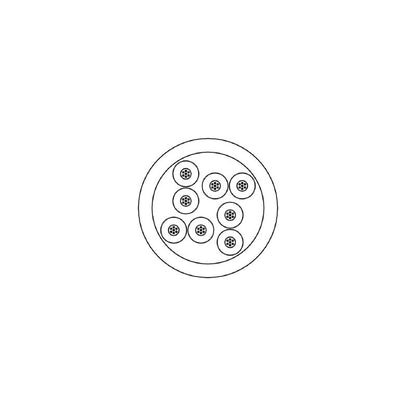

Cable structure	Twisted pair
Wire core insulation thickness	0.23 mm
Insulation cross-section	0.95 mm
