8952950000 - IP20 Zinc RJ45 Connector for Cat.6, Power over Ethernet (Pack of 24)

SKU: SKU: 8952950000 Download PDF

Select a Variant:

8952950000 - IP20 Zinc RJ45 Connector for Cat.6, Power over Ethernet (Pack of 24)

SET THE QTY:

Now $369.11 Web pricing policy

~~BEFORE $0.00~~ Now $369.11 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

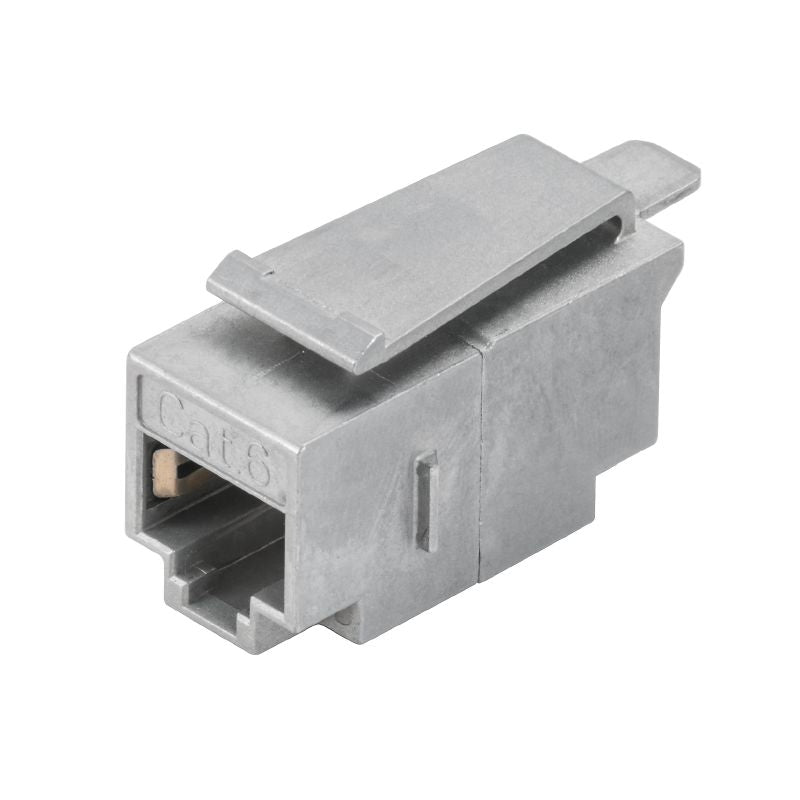

Introducing the IE-XR-RJ45/RJ45-2 connector, an RJ45-style connector featuring a robust mounting flange, suitable for Cat6 and Class E applications as per ISO/IEC 11801:2010 standards With an IP20 protection rating, this connector is crafted from durable zinc diecast material It is fully compliant with RoHS regulations, free from any SVHCs above 01 wt% This connector operates effectively in temperatures ranging from -40 °C to 70 °C and is compatible with Power over Ethernet (PoE/PoE+) adhering to IEEE 802.

3at standards.

Features and Benefits:

•360° shield contact for enhanced shielding.

•Insertion force is ≤ 30 N.

•Designed for up to 750 plugging cycles.

•Contact resistance is ≤ 20 mΩ.

•Rated current-carrying capacity at 50 °C is 1 A.

•Dielectric strength between contacts is ≥ 1000 V AC/DC.

•Dielectric strength between contact and shield is ≥ 1500 V AC/DC.

Specifications:

Operating temperature	-40 °C...70 °C
Connection 1	RJ45
Housing main material	Zinc diecast
Category	Cat.6 / Class E
Shielding	360° shield contact
Protection degree	IP20
Plugging cycles	750
Current-carrying capacity at 50 °C	1 A
Contact resistance	≤ 20 mΩ
Dielectric strength	{'contact/contact': '≥ 1000 V AC/DC', 'contact/shield': '≥ 1500 V AC/DC'}
PoE/PoE+	conforming to IEEE 802.3at
Connector standard	IEC 60603-7-5
