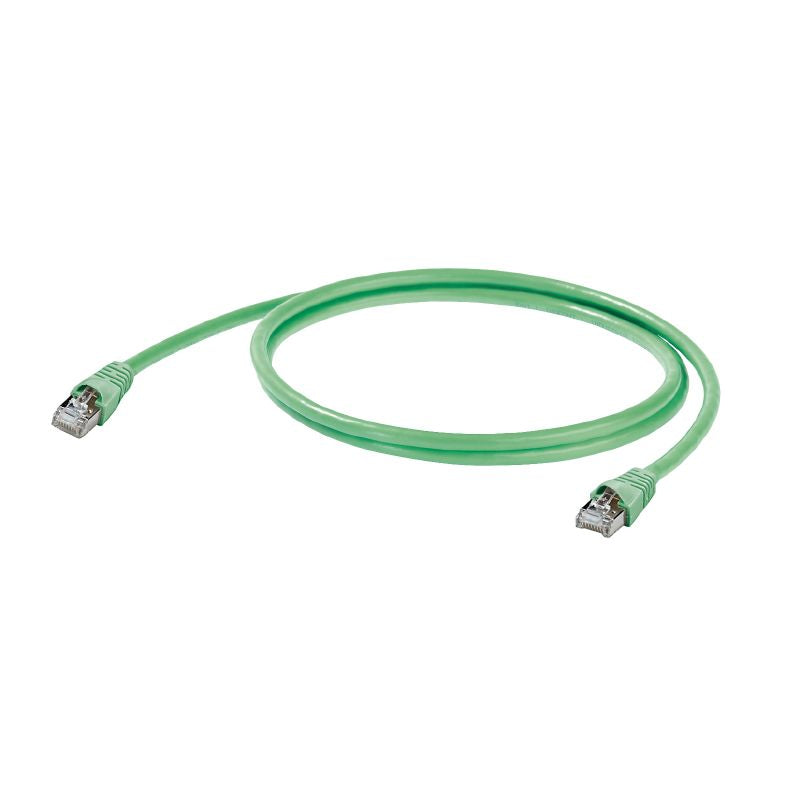

8941350055 - 5.5m PUR RJ45 Cable, IP 20, PoE Compatible

SKU: SKU: 8941350055 Download PDF

Select a Variant:

8941350055 - 5.5m PUR RJ45 Cable, IP 20, PoE Compatible

SET THE QTY:

Now $37.30 Web pricing policy

~~BEFORE $0.00~~ Now $37.30 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing a versatile system cable equipped with RJ45 IP 20 connectors, ideal for a range of applications This durable cable spans 55 meters in length and is crafted from high-quality PUR material Fully compliant with RoHS regulations, it contains no exemptions Weighing in at 225 grams, it is built to perform well in extreme temperatures, functioning efficiently from -40 °C to 85 °C Additionally, it supports Power over Ethernet (PoE) in accordance with IEEE 802.

3at standards, making it a reliable choice for your connectivity needs.

Features and Benefits:

•RoHS compliant without exemptions.

•Halogen-free according to IEC 60754-2.

•Very good abrasion resistance.

•UV-resistant.

•Silicone-free.

Specifications:

Length	5.5 m
Installation temperature	-10 °C to 60 °C
Storage temperature	-40 °C to 85 °C
Operating temperature	-40 °C to 85 °C
Sheath diameter, max.	6.4 mm
Sheath diameter, min.	6 mm
Cable structure	Twisted pair
Number of wires	8
Electrical properties - Capacity at 1 kHz	46 nF/km
Characteristic impedance	100 ± 15 Ω at 1–100 MHz, 100 ± 22 Ω at 100–250 MHz, 100 ± 25 Ω at 250–600 MHz
Delay skew	25 ns/100m
Signal propagation time	4.27 ns/m
Test voltage (wire-wire-shield)	750 V DC, 1 min
Plug left	RJ45, IP20, male contact, straight, plug, Plastic, shielded
Plug right	RJ45, IP20, male contact, straight, plug, Plastic, shielded
