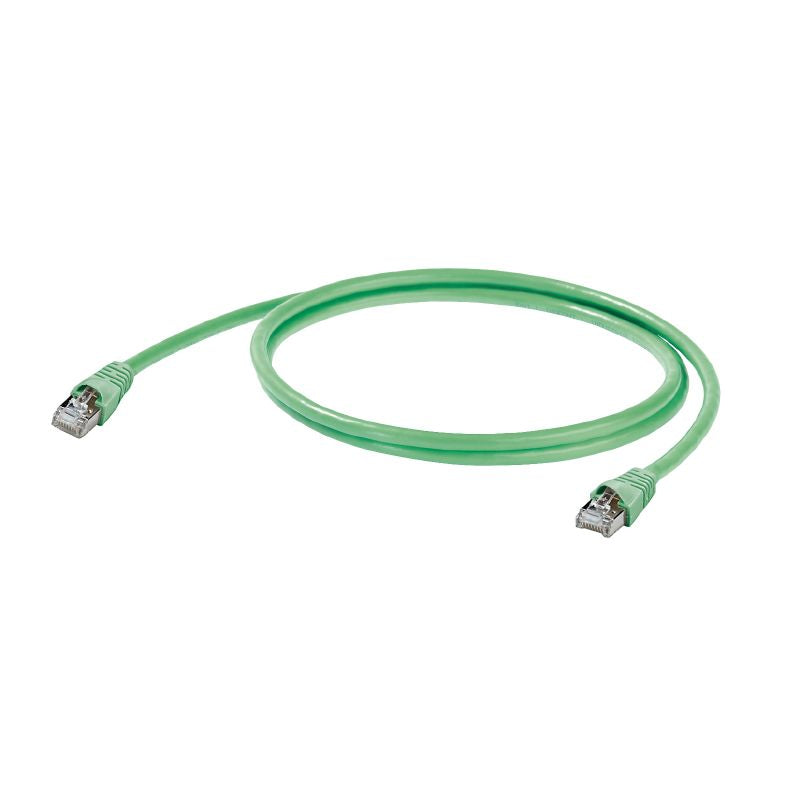

8941350050 - 5m PUR RJ45 Cat.6A System Cable, IP20 Flexibility

8941350050 - 5m PUR RJ45 Cat.6A System Cable, IP20 Flexibility

SKU: 8941350050   Download PDF

Select a Variant:
  • 8941350050 - 5m PUR RJ45 Cat.6A System Cable, IP20 Flexibility
Qty:
Now $38.01   Web pricing policy
BEFORE   $0.00 Now $38.01 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the RJ45 IP 20 system cable, a top-tier choice for your networking needs Measuring 5 meters in length, this cable adheres to Cat6A standards for lengths under 20 meters and complies with Class EA for lengths beyond that, following the ISO/IEC 11801 2010 specifications Its sheath is crafted from durable PUR material, providing both flexibility and resilience in a variety of environments.

Features and Benefits:

    •Compliant with RoHS without exemptions.

    •Supports PoE/PoE+ conforming to IEEE 802.3at.

    •Abrasion-resistant and UV-resistant.

    •Halogen-free and silicone-free construction.

Specifications:

 Length 5 m
 Net weight 198 g
 Storage temperature -40 °C to 85 °C
 Operating temperature -40 °C to 85 °C
 Installation temperature -10 °C to 60 °C
 Cable structure Twisted pair with shielding braid made from copper wiring
 Shielding S/FTP
 Signal propagation time 4.27 ns/m
 Transmission rate 10 Gbit/s
 Sheath diameter (max) 6.4 mm
 Sheath diameter (min) 6 mm
 Wire material Stranded tin-plated copper wire
 Characteristic impedance 100 ± 15 Ω at 1–100 MHz; 100 ± 22 Ω at 100–250 MHz; 100 ± 25 Ω at 250–600 MHz
 Delay skew 25 ns/100m
