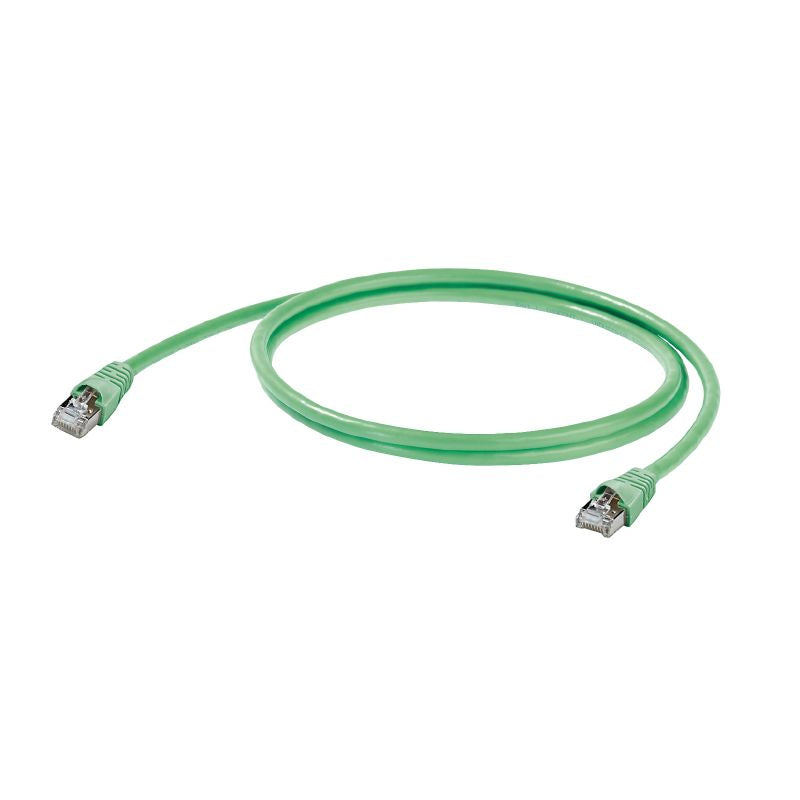

8941350045 - 4.5m Cat.6A PUR RJ45 System Cable, IP 20

SKU: SKU: 8941350045 Download PDF

Select a Variant:

8941350045 - 4.5m Cat.6A PUR RJ45 System Cable, IP 20

SET THE QTY:

Now $31.61 Web pricing policy

~~BEFORE $0.00~~ Now $31.61 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Optimize your network connections with this high-performance system cable, featuring an RJ45 connector and designed to meet Cat6A standards for lengths up to 20 meters For lengths exceeding 20 meters, it complies with Class EA, in accordance with ISO/IEC 11801 2010 The cable is protected by a robust PUR sheath and extends 45 meters, ensuring durability and reliability for your connectivity needs.

Features and Benefits:

•Compliant with RoHS without exemption.

•Very good abrasion resistance.

•Halogen-free according to IEC 60754-2.

•Silicone-free.

•UV-resistant.

Specifications:

Length	4.5 m
Net weight	170 g
Storage temperature	-40 °C to 85 °C
Operating temperature	-40 °C to 85 °C
Installation temperature	-10 °C to 60 °C
Shielding	S/FTP
Sheath diameter (max)	6.4 mm
Sheath diameter (min)	6 mm
Number of wires	8
Wire material	Stranded tin-plated copper wire
Capacity at 1 kHz	46 nF/km
Category	<20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010)
Characteristic impedance	100 ± 15 Ω at 1–100 MHz, 100 ± 22 Ω at 100–250 MHz, 100 ± 25 Ω at 250–600 MHz
Delay skew	25 ns/100m
Signal propagation time	4.27 ns/m
Test voltage: wire-wire-shield	750 V DC, 1 min
Plug left	RJ45, IP20, male contact, straight, plastic, shielded
Plug right	RJ45, IP20, male contact, straight, plastic, shielded
