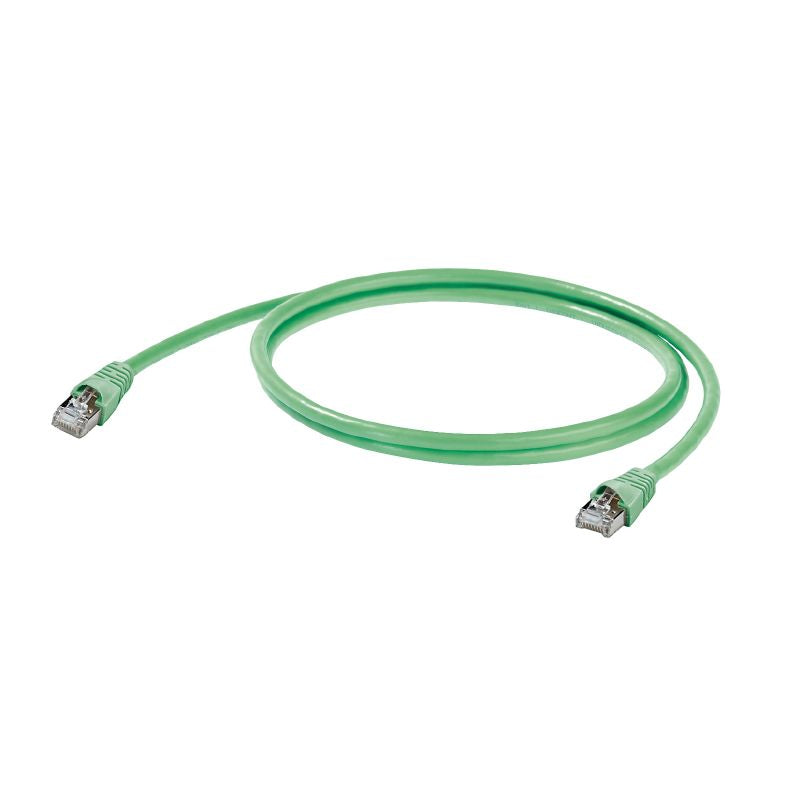

8941350002 - 0.2m Cat.6A RJ45 Cable with PUR Sheath

SKU: SKU: 8941350002 Download PDF

Select a Variant:

8941350002 - 0.2m Cat.6A RJ45 Cable with PUR Sheath

SET THE QTY:

Now $6.46 Web pricing policy

~~BEFORE $0.00~~ Now $6.46 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing a high-performance system cable that meets Cat6A specifications for lengths up to 20 meters, and conforms to Class EA standards per ISO/IEC 11801:2010 for lengths exceeding 20 meters This cable is equipped with reliable RJ45 connectors and encased in a durable PUR outer sheath, measuring a compact 02 meters Additionally, it boasts various certifications, confirming its compliance with RoHS and UL standards, ensuring a reliable choice for your networking needs.

Features and Benefits:

•Compliant with RoHS regulations.

•Twisted pair wire arrangement.

•Halogen-free.

•UV-resistant.

•Good abrasion resistance.

•Very good mechanical properties.

Specifications:

Length	0.2 m
Sheath diameter, max	6.4 mm
Sheath diameter, min	6 mm
Operating temperature	-40 °C to 85 °C
Storage temperature	-40 °C to 85 °C
Installation temperature	-10 °C to 60 °C
Number of wires	8
Cross-section	42AWG 27/7 - 420.1 mm²
Characteristic impedance	100 ± 15 Ω at 1–100 MHz, 100 ± 22 Ω at 100–250 MHz, 100 ± 25 Ω at 250–600 MHz
Capacity at 1 kHz	46 nF/km
Signal propagation time	4.27 ns/m
Delay skew	25 ns/100m
Resistance to oils	in accordance with IEC 60811-2-1
Resistance to spread of flame	in accordance with IEC 60332-1 / UL 1581 FT2
Min bending radius, once only	5 x cable diameter
Min bending radius, repetitive	10 x cable diameter
Plug	RJ45, IP20, male contact, straight, plug, Plastic, shielded
