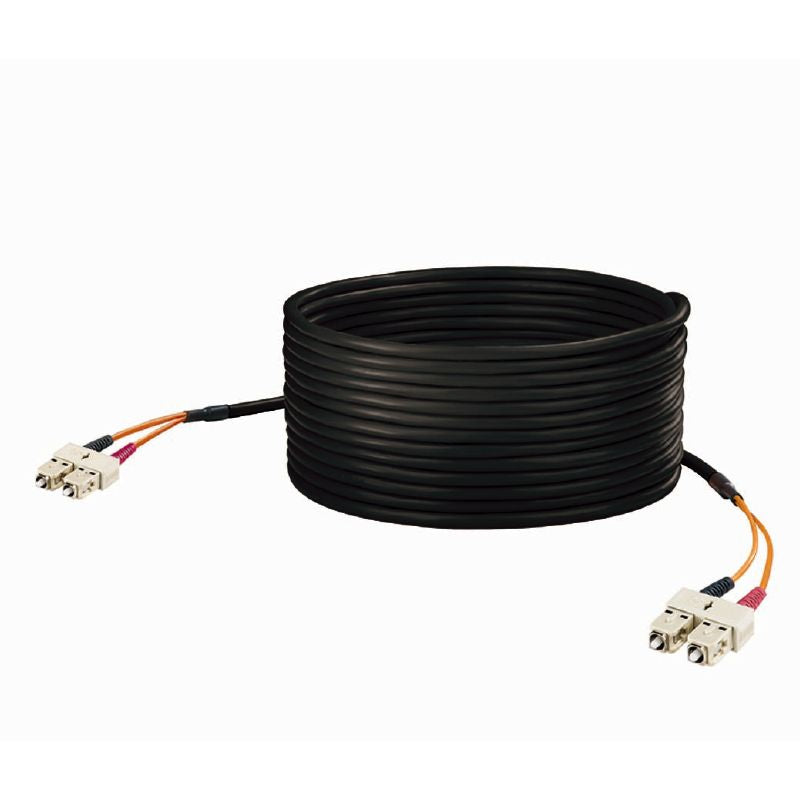

8876430500 - 50m SC Duplex Crossover Patch Cable for Robust Connections

8876430500 - 50m SC Duplex Crossover Patch Cable for Robust Connections

SKU: SKU: 8876430500 Download PDF

Variant:
  • 8876430500 - 50m SC Duplex Crossover Patch Cable for Robust Connections
Regular price Now $314.44
Regular price BEFORE   $0.00 Sale price Now $314.44
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Connect with confidence using this pre-assembled crossover patch cable, equipped with SC duplex connectors for reliable performance over long distances Made from 50 μm multimode fiber, this cable spans 50 meters, making it ideal for applications that require strength and durability Its operational temperature range is from -20 °C to 60 °C, while it can be safely stored in conditions from -40 °C to 80 °C, ensuring versatility for various environments.

Features and Benefits:

    •Designed for reliability in various temperature conditions.

    •High bandwidth performance with low attenuation.

    •Suitable for high bending cycles.

    •Utilizes a PUR sheath for durability.

    •Crossover design to facilitate direct connections.

Specifications:

 Length: 50 m
 Net weight: 1,776 g
 Storage temperature: -40 °C to 80 °C
 Operating temperature: -40 °C to 80 °C
 Installation temperature: -20 °C to 60 °C
 Fibre type: GOF Multimode OM2
 Core diameter: 50 µm
 Sheath diameter: 6 mm
 Bending cycles: 100,000
 Min. bending radius, once only: 25 mm
 Min. bending radius, repetitive: 77 mm
 Attenuation at 850 nm: 2.3 dB/km
 Attenuation at 1300 nm: ≤ 0.5 dB/km
 Bandwidth at 850 nm: 500 MHz*km
 Bandwidth at 1300 nm: 500 MHz*km
 Material sheath: PUR
