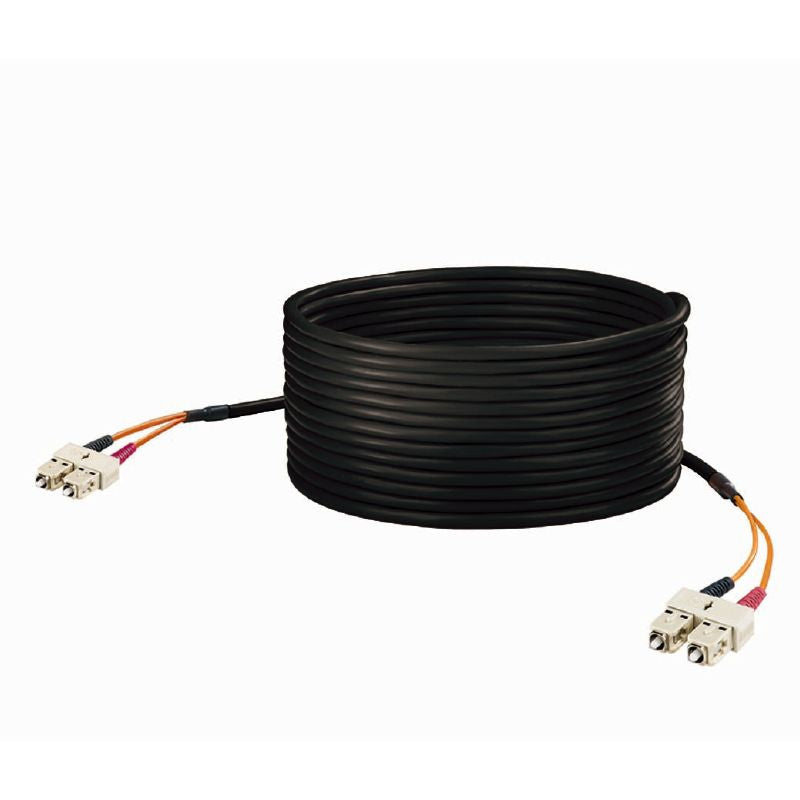

8876430035 - 3.5m SC Duplex Crossover Patch Cable, 50µm Fiberglass Core

8876430035 - 3.5m SC Duplex Crossover Patch Cable, 50µm Fiberglass Core

SKU: 8876430035   Download PDF

Select a Variant:
  • 8876430035 - 3.5m SC Duplex Crossover Patch Cable, 50µm Fiberglass Core
Qty:
Now $59.29   Web pricing policy
BEFORE   $0.00 Now $59.29 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

This 35-meter patch cable is a pre-assembled crossover designed specifically for SC duplex applications It features a durable 50 µm fiberglass core, encased in a high-quality PUR sheath Compliant with RoHS standards with a relevant exemption, this cable can perform reliably in a temperature range of -40 °C to 80 °C, making it suitable for a variety of environments.

Features and Benefits:

    •Compliant with RoHS and REACH standards.

    •Suitable for a variety of environmental conditions.

    •Designed for high performance with minimal attenuation.

Specifications:

 Length 3.5 m
 Length (inches) 137.795 inch
 Storage temperature -40 °C to 80 °C
 Operating temperature -40 °C to 80 °C
 Installation temperature -20 °C to 60 °C
 Fibre type GOF multimode OM2
 Cable layout Break-out dragline
 Core diameter 50 µm
 Sheath diameter 6 mm
 Bending cycles 100,000
 Min. bending radius, once only 25 mm
 Min. bending radius, repetitive 77 mm
 Attenuation 2.3 dB/km at 850 nm, ≤ 0.5 dB/km at 1300 nm
 Bandwidth 500 MHz*km at 850 nm, 500 MHz*km at 1300 nm
 Halogen No
