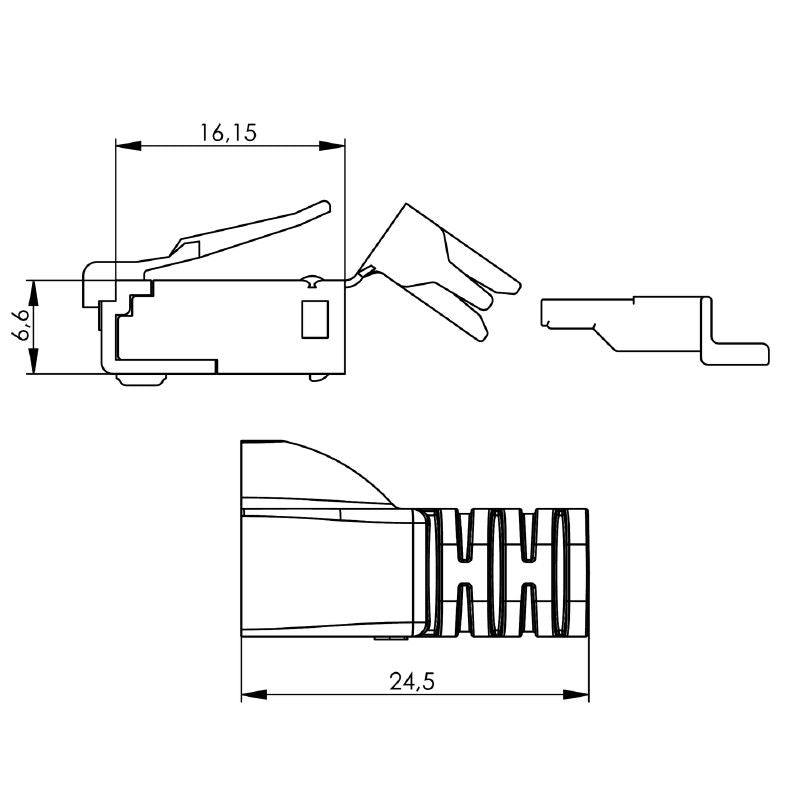

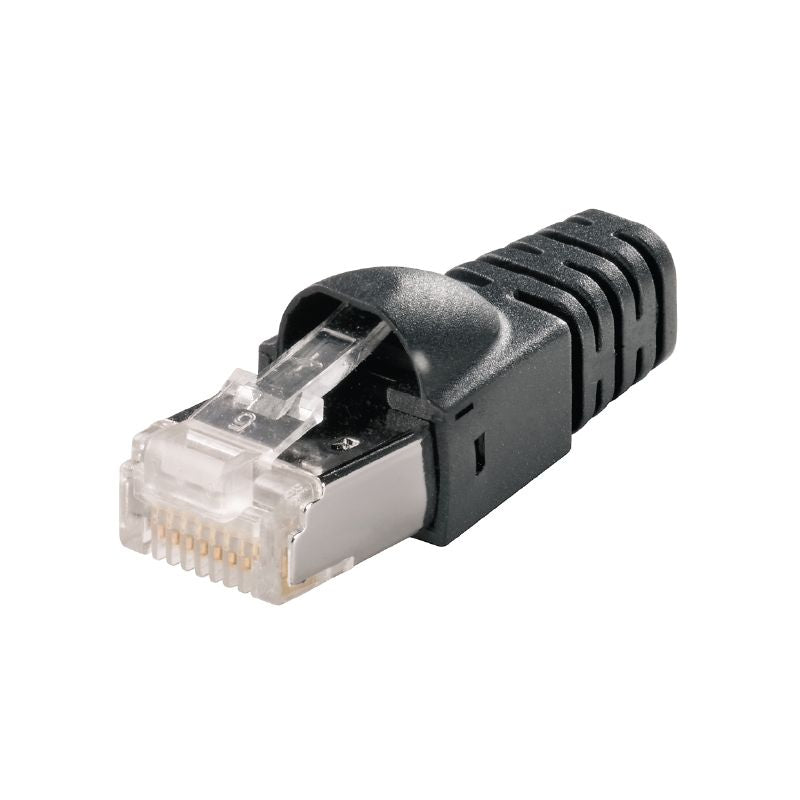

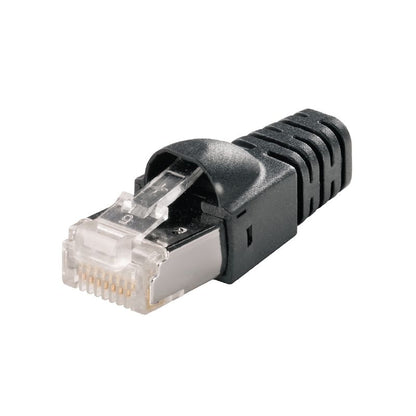

8813110000 - Cat.6A RJ45 Connector with Kink Protection, 5.5-6.2mm Diameter (Pack of 10)

8813110000 - Cat.6A RJ45 Connector with Kink Protection, 5.5-6.2mm Diameter (Pack of 10)

SKU: 8813110000   Download PDF

Select a Variant:
  • 8813110000 - Cat.6A RJ45 Connector with Kink Protection, 5.5-6.2mm Diameter (Pack of 10)
Qty:
Now $35.70   Web pricing policy
BEFORE   $0.00 Now $35.70 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the RJ45 plug-in connector, expertly engineered with kink protection and accommodating cable diameters from 55 to 62 mm This connector complies with Cat6 A / Class E A standards according to ISO/IEC 11801 2010, providing reliable IP20 protection Ideal for crimping, it is compatible with both solid and flexible conductors, making it a versatile choice for your networking needs.

Features and Benefits:

    •Compliant with RoHS and REACH SVHC without any SVHC above 0.1 wt%.

    •Moulded bending protection.

    •Gold-plated contact surface.

    •PVC, UL 94-V0 bending protection sleeve.

    •360-degree all-round enclosure shielding.

Specifications:

 Order No. 8813110000
 GTIN (EAN) 4032248512867
 Storage temperature -40 °C...80 °C
 Operating temperature -40 °C...70 °C
 Insulation cross-section, min. 0.85 mm
 Insulation cross-section, max. 1.05 mm
 Cable pull-out force, min. 89 N
 Category Cat.6 A / Class E A (ISO/IEC 11801 2010)
 Connection 1 RJ45
 Connection 2 Crimp
 Connection diameter, solid 0.36...0.51 mm
 Connection diameter, flexible 0.46...0.61 mm
 Conductor connection cross-section, solid (AWG) AWG 27...AWG 24
 Conductor connection cross-section, flexible (AWG) AWG 27...AWG 24
 Sheath diameter, min. 5.5 mm
 Sheath diameter, max. 6.2 mm
 Shielding material 0.5 mm brass, 2 µm nickel
 Insertion force 20 N
 Plugging cycles 750
 Material insulator Polycarbonate PC, UL 94 V-0
 Contact resistance ≤ 20 mΩ
 Current-carrying capacity at 50 °C 1 A
 Dielectric strength, contact / contact ≥ 1000 V AC/DC
 Dielectric strength, contact / shield ≥ 1500 V AC/DC
 Insulation resistance 500 MΩ
 PoE / PoE+ conforming to IEEE 802.3af
 Connector standard IEC 60603-7-51
 MICE classification M M 1
 MICE classification I I 1
 MICE classification C C 1
 MICE classification E E 3
