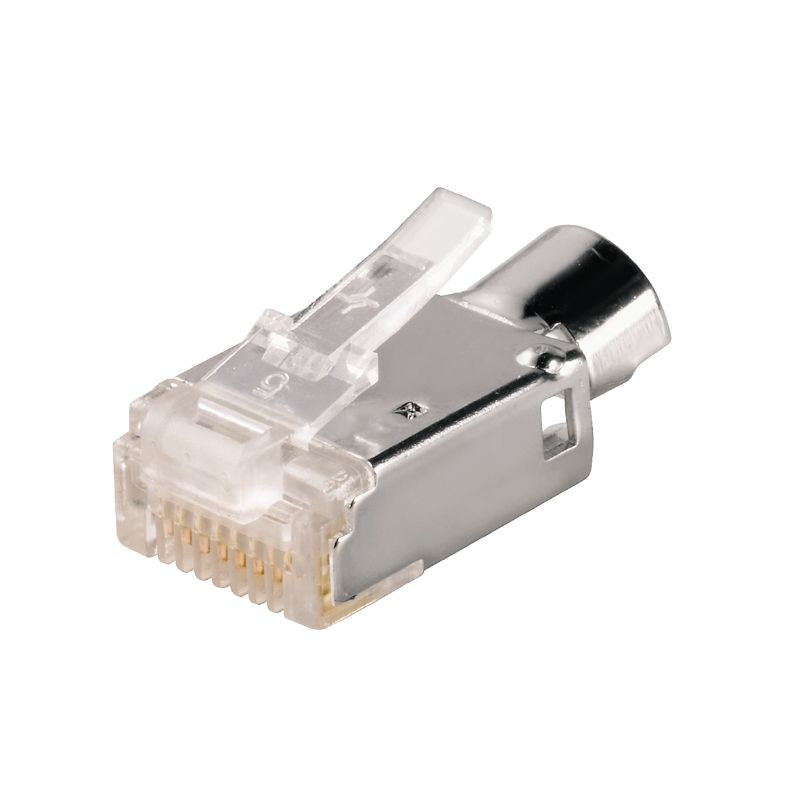

8813100000 - Cat.6A RJ45 Plug Connector, 5.5-7.1mm, IP20 Rated (Pack of 100)

8813100000 - Cat.6A RJ45 Plug Connector, 5.5-7.1mm, IP20 Rated (Pack of 100)

SKU: 8813100000   Download PDF

Select a Variant:
  • 8813100000 - Cat.6A RJ45 Plug Connector, 5.5-7.1mm, IP20 Rated (Pack of 100)
Qty:
Now $306.49   Web pricing policy
BEFORE   $0.00 Now $306.49 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing a reliable RJ45 plug-in connector, specifically engineered without kink protection for optimal performance This connector falls under the Cat6 A / Class E A category in accordance with ISO/IEC 11801 2010 standards and boasts an IP20 protection rating It is compatible with various insulation cross-sections, ensuring efficient resistance against pull-out forces for your cables .

Features and Benefits:

    •Compliant with RoHS without exemption.

    •No SVHC above 0.1 wt% in accordance with REACH.

    •Gold-plated contact surface.

    •Suitable for solid and flexible conductor connection.

    •Can withstand up to 750 plugging cycles.

Specifications:

 Connection 1 RJ45
 Connection 2 Crimp
 Insulation cross-section, min. 0.85 mm
 Insulation cross-section, max. 1.05 mm
 Cable pull-out force, min. 89 N
 Category Cat.6 A / Class E A (ISO/IEC 11801 2010)
 Contact material Phosphorus bronze
 Connection diameter, solid 0.36...0.51 mm
 Conductor connection cross-section, solid (AWG) AWG 27...AWG 24
 Connection diameter, flexible 0.46...0.61 mm
 Conductor connection cross-section, flexible (AWG) AWG 27...AWG 24
 Sheath diameter, min. 5.5 mm
 Sheath diameter, max. 7.1 mm
 Shielding material 0.5 mm brass, 2 µm nickel
 Shielding 360° all-round enclosure
 Protection degree IP20
 Insertion force 20 N
 Material insulator Polycarbonate PC, UL 94 V-0
 Current-carrying capacity at 50 °C 1 A
 Dielectric strength, contact / contact ≥ 1000 V AC/DC
 Dielectric strength, contact / shield ≥ 1500 V AC/DC
 Insulation resistance 500 MΩ
 PoE / PoE+ conforming to IEEE 802.3af
 Connector standard IEC 60603-7-51
