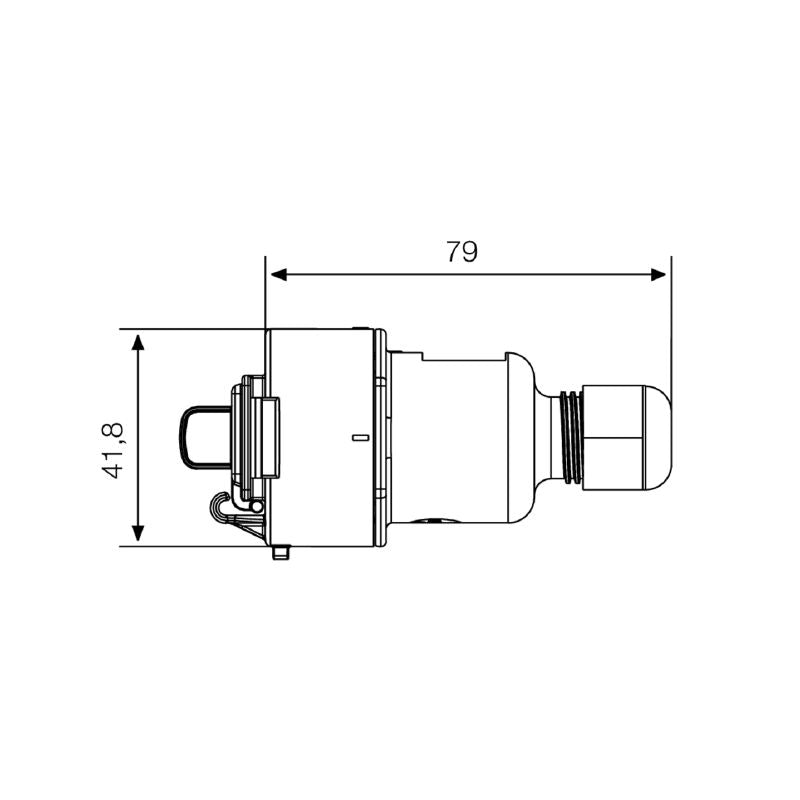

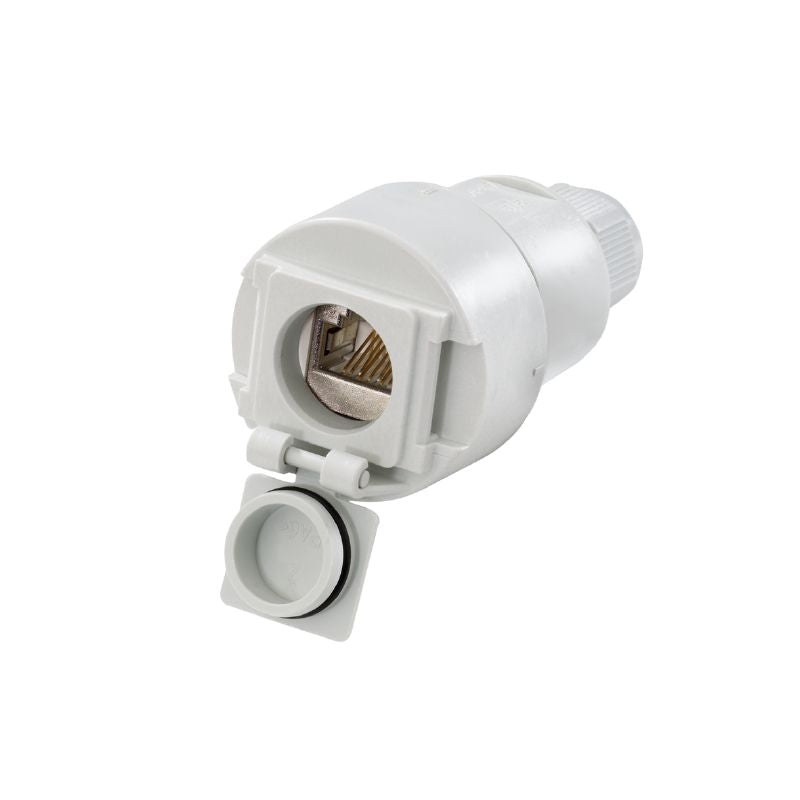

8813090000 - IP67 RJ45 Connector for Cable Coupling

8813090000 - IP67 RJ45 Connector for Cable Coupling

SKU: 8813090000   Download PDF

Select a Variant:
  • 8813090000 - IP67 RJ45 Connector for Cable Coupling
Qty:
Now $42.34   Web pricing policy
BEFORE   $0.00 Now $42.34 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the IE-C-IP67 connector, specifically engineered for cable coupling applications This robust connector boasts an IP67 waterproof rating, ensuring reliable performance in challenging environments It adheres to Class EA standards as per ISO/IEC 11801 2010 and features an RJ45 module equipped with IDC connections The wiring is meticulously organized with color-coded pin configurations in accordance with EIA/TIA standards T568 A and B, making installation straightforward and efficient.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •No SVHC above 0.1 wt% as per REACH.

    •Designed for floor and wall mounting.

    •Capable of withstanding 750 plugging cycles.

    •Provides a 360° shield contact for enhanced shielding.

Specifications:

 Operating temperature: -40 °C to 70 °C
 Connection 1: RJ45
 Connection 2: IDC
 Coupling Composition: Coupling including RJ 45 module with IDC connection
 Sheath diameter (min): 6 mm
 Sheath diameter (max): 9.5 mm
 Protection degree: IP67
 Contact surface: Gold over nickel
 Housing main material: PA 66
 UL 94: V-0
 Connector standard: IEC 61076-3-106 Var. 6, IEC 60603-7-5
