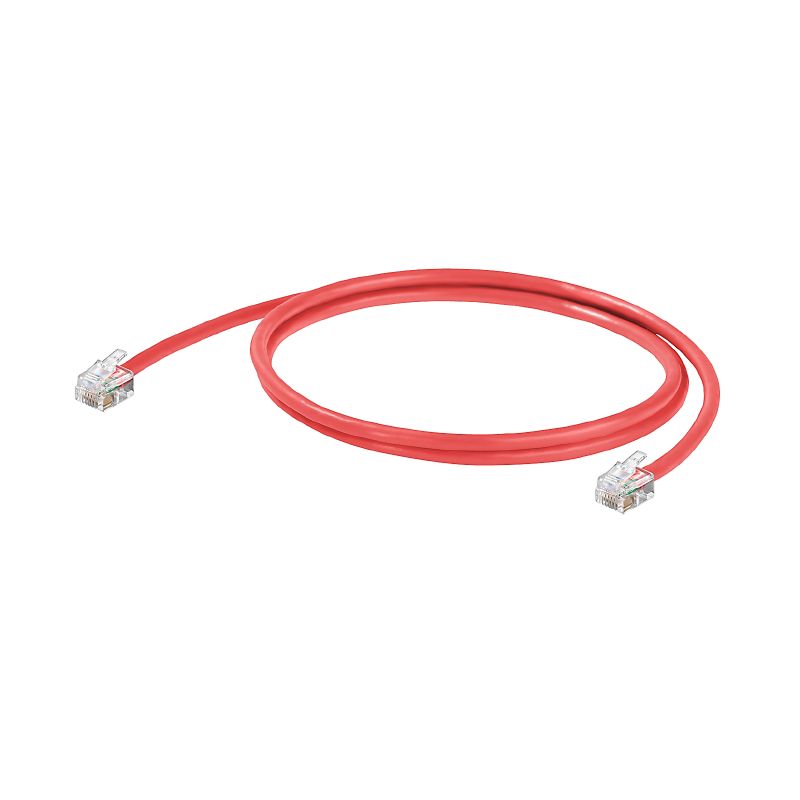

2979950000 - 0.35m RJ12 LSZH Patch Cable for Communication Applications

2979950000 - 0.35m RJ12 LSZH Patch Cable for Communication Applications

SKU: 2979950000   Download PDF

Select a Variant:
  • 2979950000 - 0.35m RJ12 LSZH Patch Cable for Communication Applications
Qty:
Now $10.64   Web pricing policy
BEFORE   $0.00 Now $10.64 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Optimize your communication setup with this specialized patch cable, perfect for various applications Measuring 035 meters (1378 inches) in length, it comes equipped with standard RJ12 connectors Constructed in accordance with LSZH specifications, this cable is RoHS compliant, making it suitable for a wide range of environments It functions optimally across a temperature range of -20 °C to 60 °C The cable features a durable design with a 3x2xAWG 24/7 wire configuration, and its sheath diameter ranges from 4.

65 mm to 495 mm, providing both flexibility and resilience for your networking needs.

Features and Benefits:

    •Compliant with RoHS standards.

    •Suitable for Cat.3 applications.

    •Sheath material is made of LSZH.

    •Operating temperature range of -20 °C to 60 °C.

    •Plug with unshielded male contacts.

    •Used for application-specific communication cable facilities.

Specifications:

 Connector standard TIA-1096-A
 Insulation resistance ≥ 100 MΩ
 Insulation voltage, max. 500 V
 Operating voltage 50 V
 Rated impulse withstand voltage 6 kV
 Sheath diameter 4.8 mm

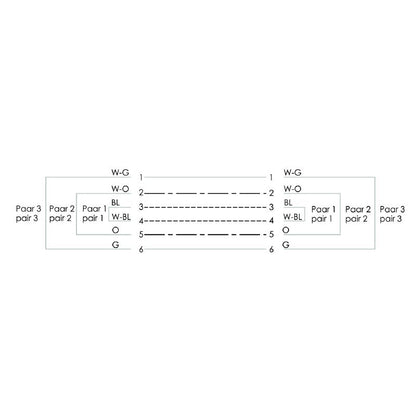

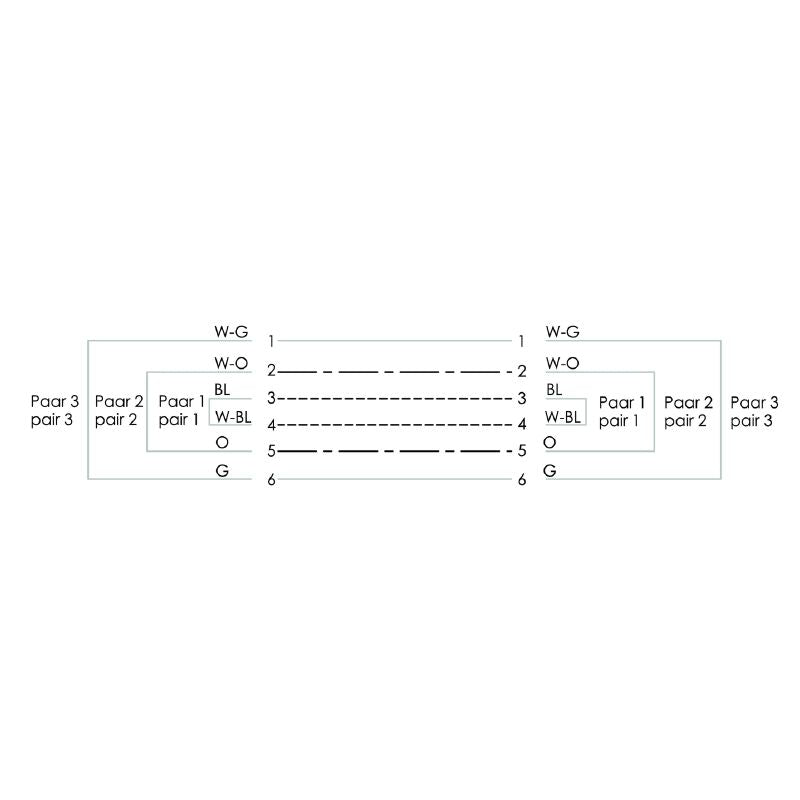

 Number of wires 6
 Category Cat.3
 Resistance to spread of flame in accordance with IEC 60332-1
