2912210075 - 7.5m IP67 M12 X-Type Cable with Male Connector

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a robust M12 X-type system cable specifically engineered for IP67 environments This cable boasts an angled male connector and adheres to the Cat 6 standard, ensuring high-speed performance Measuring 75 meters in length, it's crafted from advanced molecularly interlinked polyolefine for enhanced durability Additionally, it meets rigorous fire safety standards for railway applications, including EN 45545.

With an insulation resistance of ≥ 100 MΩ, it functions seamlessly at a rated voltage of 50 V AC and 60 V DC, making it a reliable choice for demanding settings.

Features and Benefits:

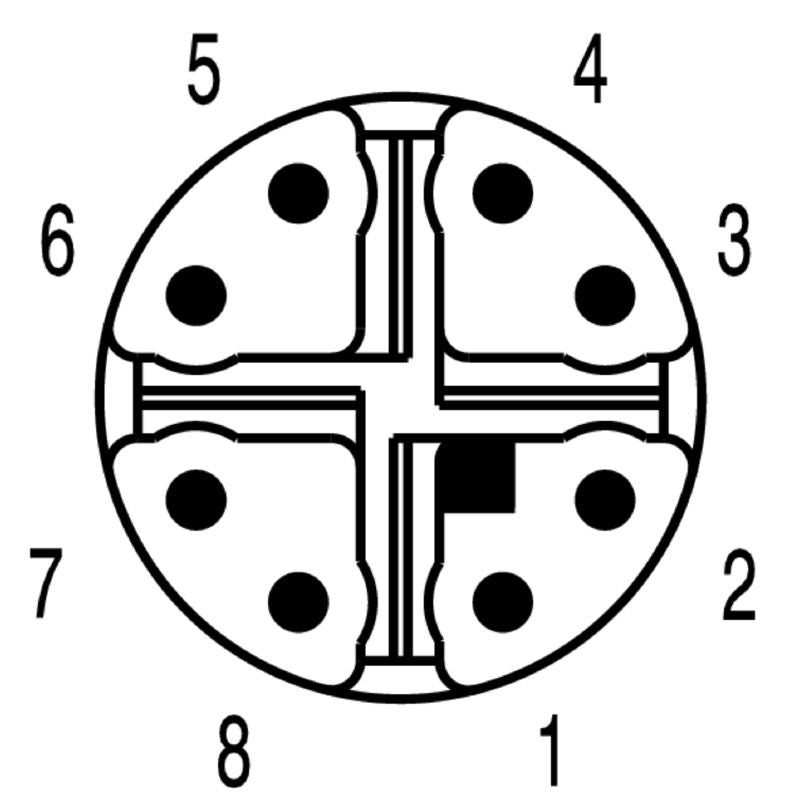

•M12, X-coded, IP67 male contact.

•Abrasion resistance rated as very good.

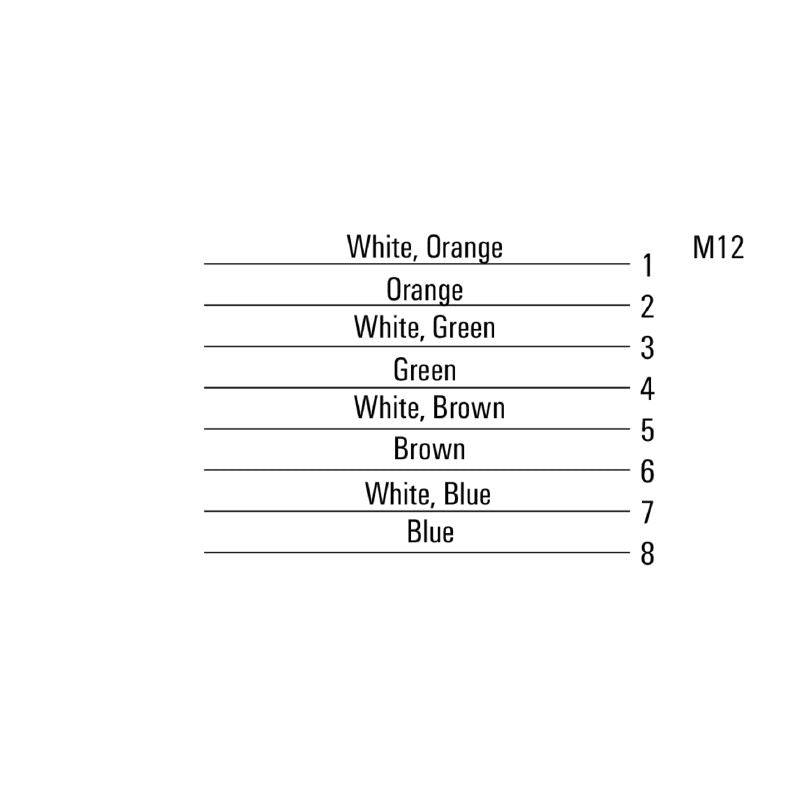

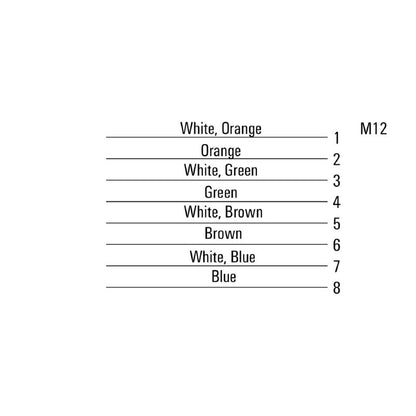

•Cable structure includes color coding for easy identification.

•Shielding type is S/FTP.

Specifications:
