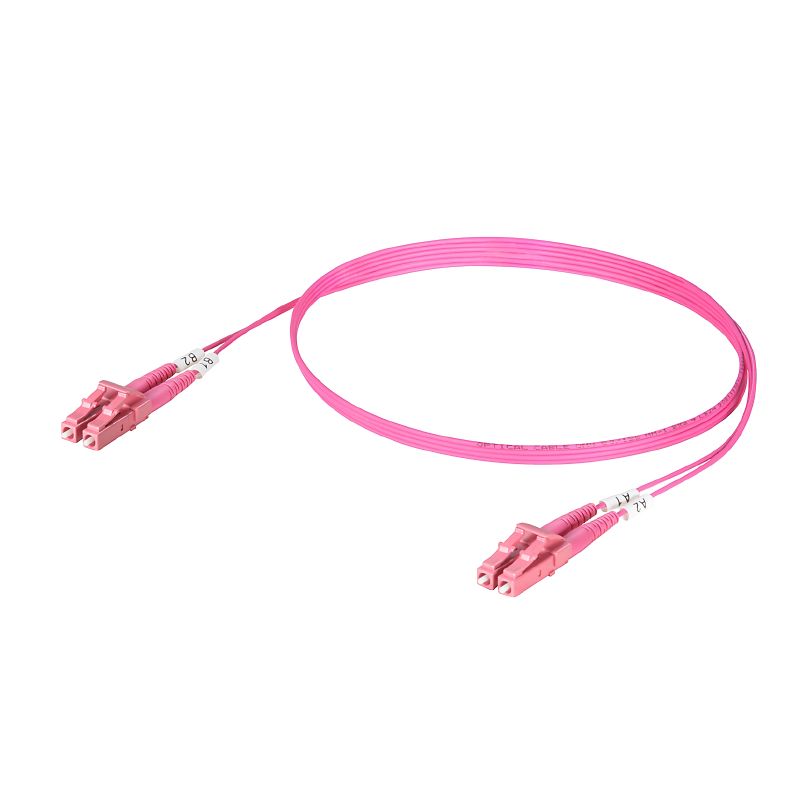

2903650030 - 3m LC-Duplex Patch Cable, 50µm Multimode, LSZH Sheath

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Enhance your connectivity with this 3-meter duplex patch cable featuring an LC-Duplex connector Built to IP20 standards, it uses high-quality 50 µm multimode fiber encased in a low-smoke zero-halogen (LSZH) sheath This cable is fully RoHS compliant and free from any hazardous substances above 01 wt% It operates effectively in temperatures ranging from -20 °C to 70 °C, making it reliable in various environments.

Features and Benefits:

•Duplex clip included.

•Compliant with IEC 61935-3 and IEC 61156-6 standards.

•Sheath material is LSZH.

•Attenuation rates are ≤ 1.5 dB at 1300 nm and ≤ 3.5 dB at 850 nm.

•Bandwidth capacity of ≥ 500 MHz*km at 1300 nm and ≥ 1500 MHz*km at 850 nm.

•Minimum bending radius of 10 x cable diameter for single bending and 20 x for repetitive bending.

Specifications:
