2870820000 - Compact 2-Core SPE Coupling with IP65 Protection (Pack of 10)

Description:

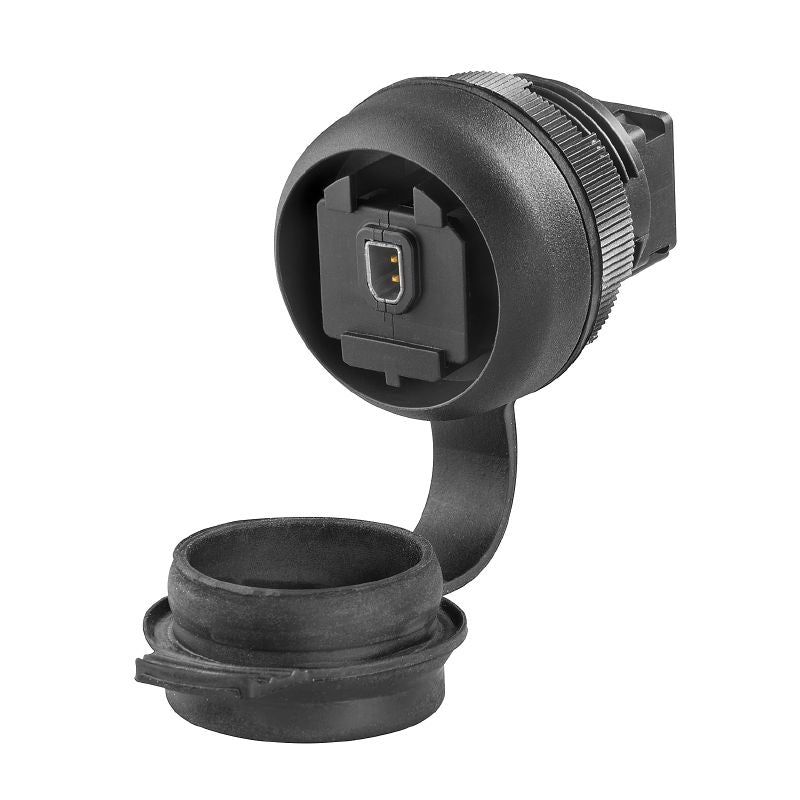

Introducing the FrontCom Micro SPE coupling, featuring a robust 2-core construction tailored for compatibility with SPE sockets in line with IEC 63171-2 standards Built with a durable PA UL 94 V0 housing, this coupling is fully compliant with RoHS regulations, ensuring no exemptions apply It operates effectively across a temperature range of -40 °C to 70 °C and comes in a compact form with wall thicknesses varying from 1 mm to 5 mm.

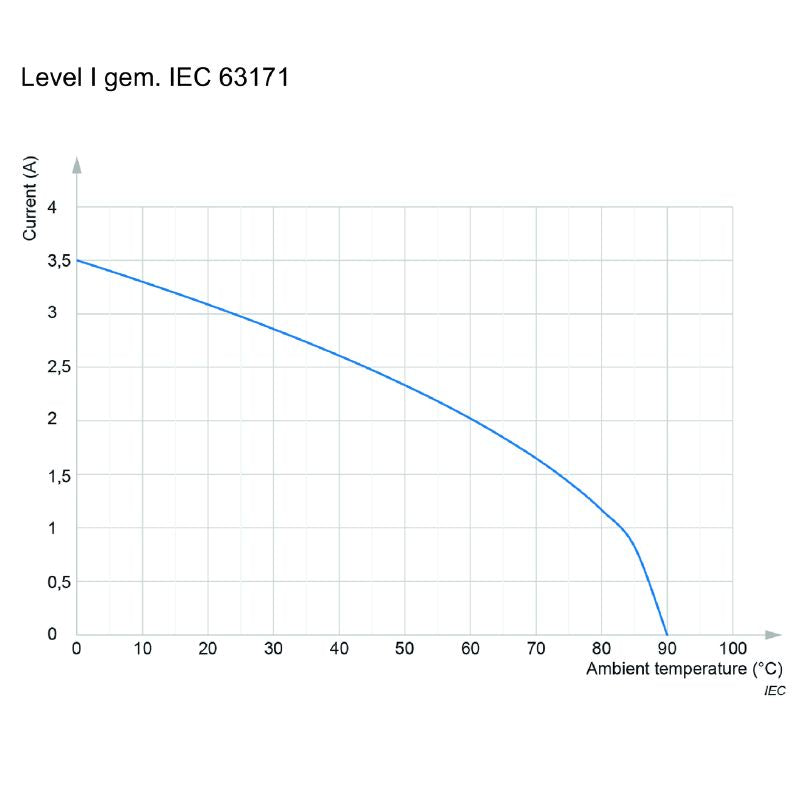

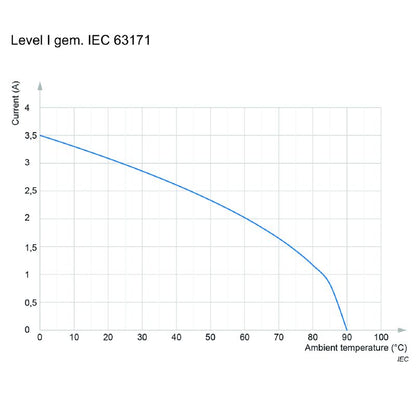

The fixing nut requires a tightening torque of 2 Nm, ensuring secure connections Engineered for durability, it accommodates up to 750 plugging cycles and maintains an IP65 protection rating when sealed With outstanding dielectric capabilities of ≥ 1000 V DC from contact to contact and 2250 V DC from contact to shield, this coupling also supports PoE/PoE+ standards as per IEEE 8023bu, allowing for a rated current of 3.

5 A at 0°C.

Features and Benefits:

•Compliant with RoHS without exemption.

•2-core design for flexible wiring options.

•Strong PA UL 94 V0 housing material.

•Endures up to 750 plugging cycles.

•Offers IP65 protection in closed state.

•Rated for operational temperatures of -40 °C to 70 °C.

Specifications:
