2870790000 - IP30 Mounted SPE Outlet with Two Sockets, RoHS Compliant (Pack of 10)

Description:

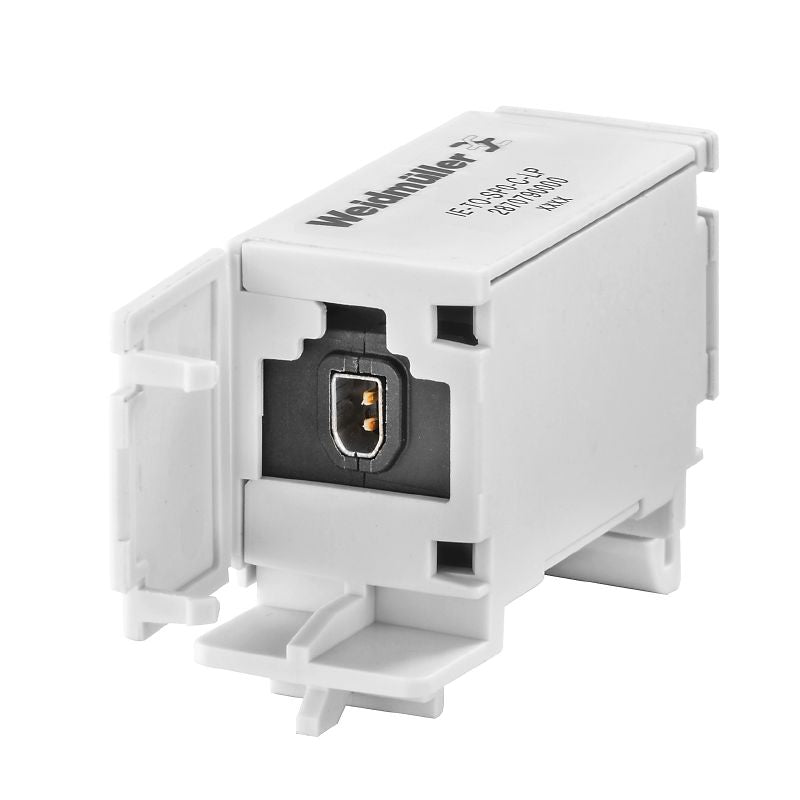

Introducing the IE-TO-SP0-C-LP mounted rail outlet, expertly crafted for SPE connections and meeting IP30 standards when closed It is equipped with two IEC 63171-2 compliant SPE sockets and has a lightweight design, weighing just 1328 g This outlet adheres to RoHS guidelines without any exemptions and contains no SVHCs exceeding 01 wt% Designed to withstand a wide operating temperature range from -40 °C to 70 °C, it features a flammability rating of UL 94 V-0 and offers protection with an IP30 rating in its closed position.

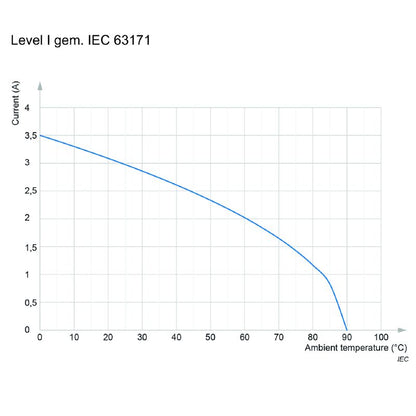

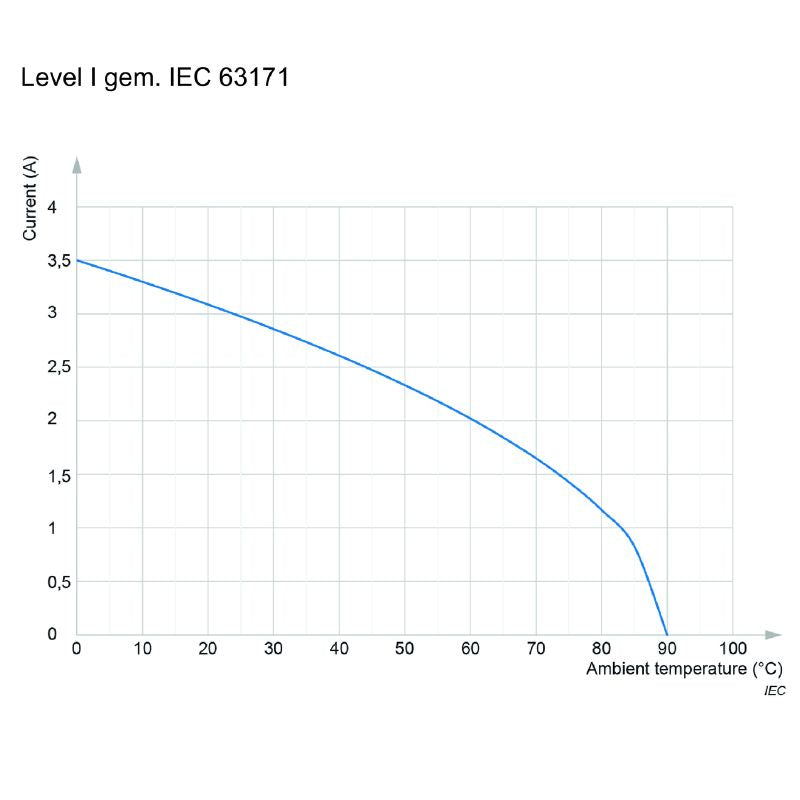

The outlet supports an impressive 750 plugging cycles, ensuring long-term reliability Electrical specifications include a dielectric strength of ≥ 1000 V DC between contacts and 2250 V DC between contact and shield, alongside an insulation resistance of at least 500 MΩ It can handle a rated current of 35 A at 0°C, making it suitable for PoE and PoE+ applications in accordance with IEEE 8023bu / cg.

Features and Benefits:

•Compliant with RoHS without any exemptions.

•Operating temperature range of -40 °C to 70 °C.

•Supports up to 750 plugging cycles.

•Gold over nickel contact surface.

•IP30 protection degree in closed state.

•Suitable for electronics and communication applications requiring SPE connectivity.

Specifications:
