2860910050 - 5m Red RJ12 Patch Cable, LSZH, RoHS Compliant

SKU: SKU: 2860910050 Download PDF

Select a Variant:

2860910050 - 5m Red RJ12 Patch Cable, LSZH, RoHS Compliant

SET THE QTY:

Now $27.47 Web pricing policy

~~BEFORE $0.00~~ Now $27.47 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

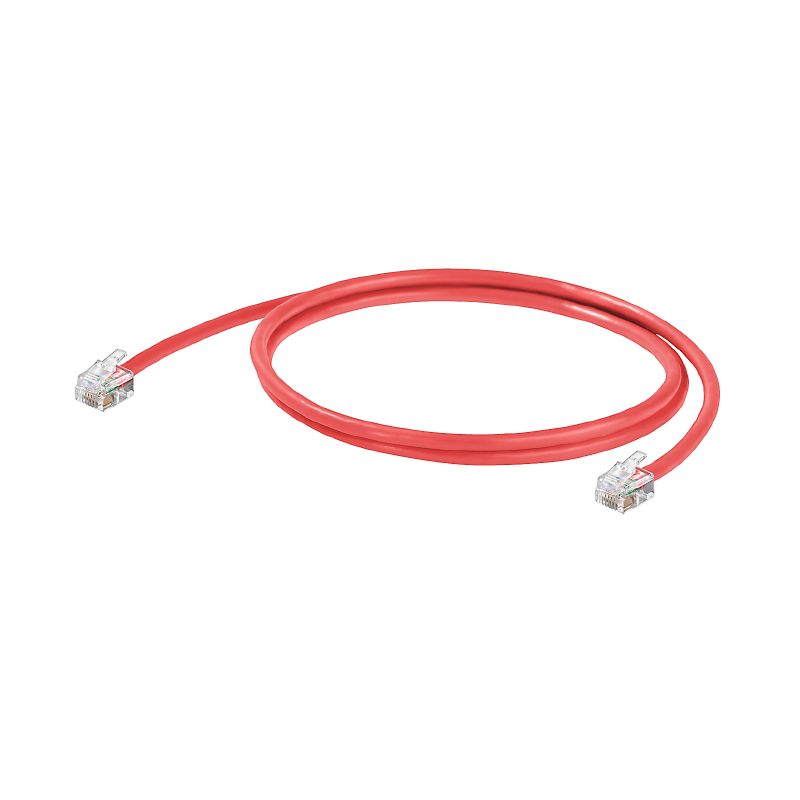

Ensure optimized communication with our 5-meter patch cable, specifically crafted for communication applications in compliance with LSZH standards This cable operates effectively across a temperature spectrum of -20 °C to 60 °C It meets RoHS regulations, ensuring it is free from any substances of very high concern Featuring a structured design with an unshielded twisted pair arrangement consisting of 6 wires, it guarantees reliable performance.

The vibrant red outer sheath has a diameter ranging from 465 mm to 495 mm, making it both functional and visually distinct.

Features and Benefits:

•Complies with RoHS regulations.

•No substances of very high concern present.

•Red sheath color.

•Unshielded twisted pair design.

•Designed for Cat.3 applications.

•Operating voltage of 50 V.

•Rated impulse withstand voltage of 6 kV.

•Communication cable facilities.

Specifications:

Length	5 m
Length (inches)	196.85 inch
Operating temperature	-20 °C to 60 °C

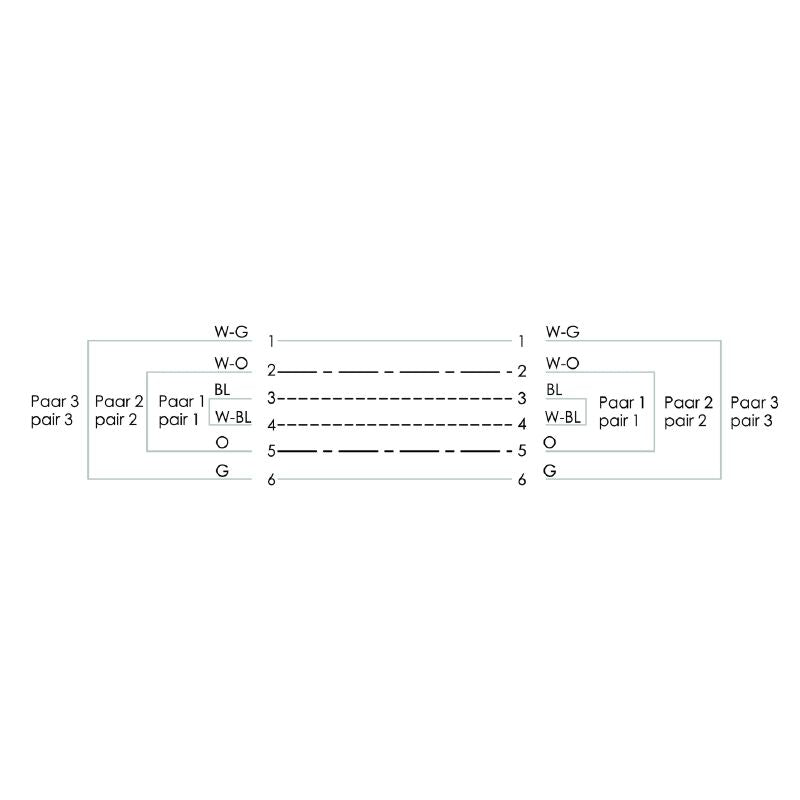

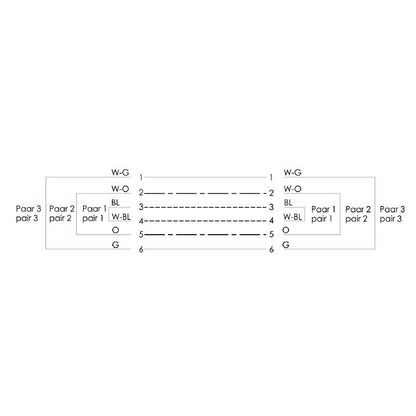

Cable structure	{'Cross-section': '3x2xAWG 24/7', 'Number of wires': '6', 'Sheath diameter': {'min': '4.65 mm', 'max': '4.95 mm'}, 'Shielding': 'U/UTP'}
Category	Cat.3
Insulation resistance	≥ 100 MΩ
Insulation voltage, max	500 V
Resistance to spread of flame	in accordance with IEC 60332-1

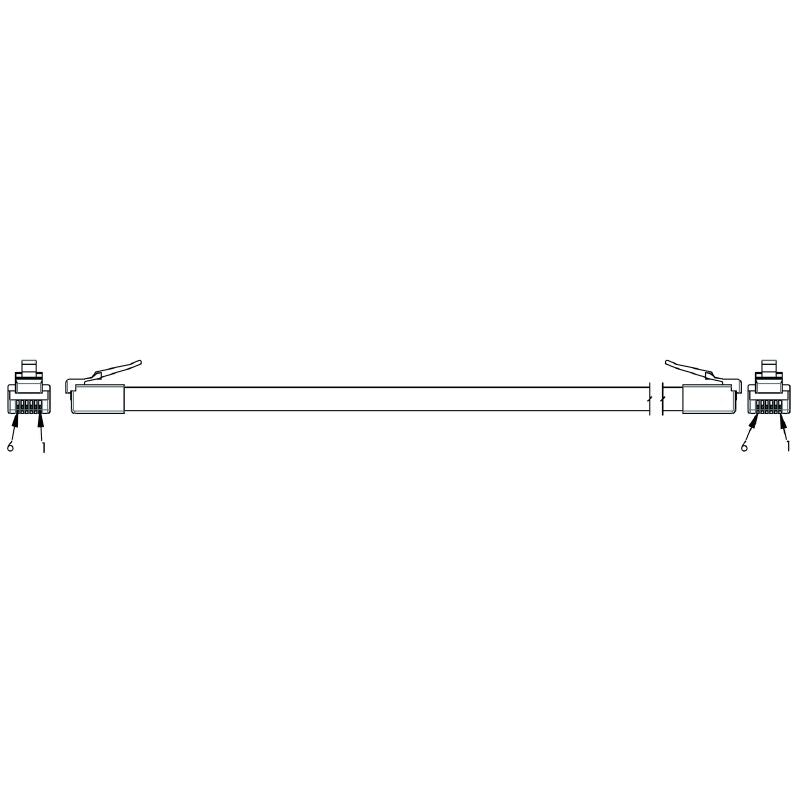

Plug	{'left': 'RJ12, IP20, male contact, straight, unshielded', 'right': 'RJ12, IP20, male contact, straight, unshielded'}
