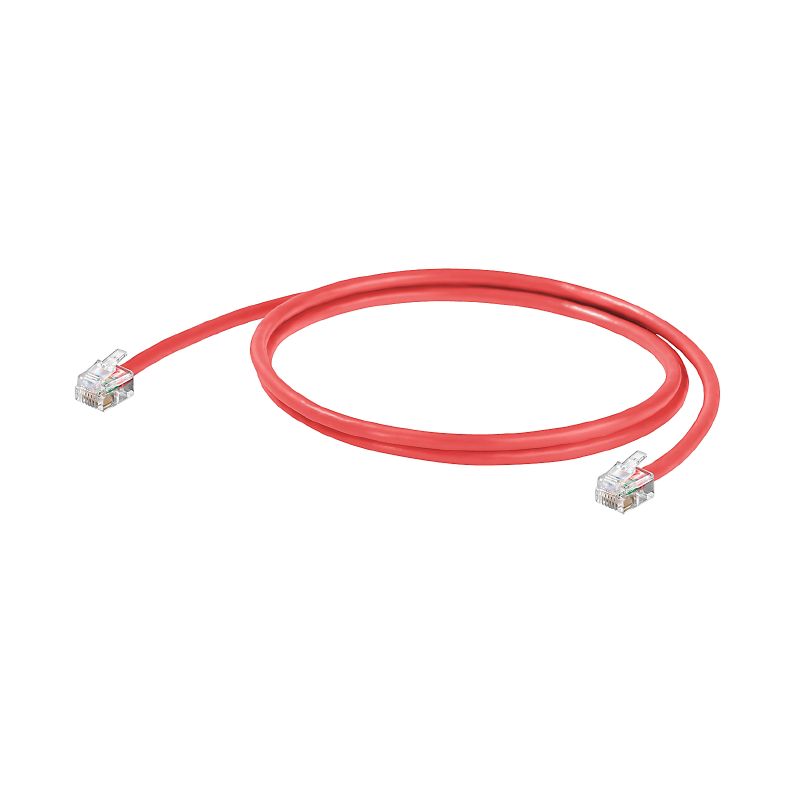

2860910013 - 1.3m LSZH RJ12 Patch Cable, 24AWG, 6kV Rated

2860910013 - 1.3m LSZH RJ12 Patch Cable, 24AWG, 6kV Rated

SKU: 2860910013   Download PDF

Select a Variant:
  • 2860910013 - 1.3m LSZH RJ12 Patch Cable, 24AWG, 6kV Rated
Qty:
Now $13.41   Web pricing policy
BEFORE   $0.00 Now $13.41 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Optimize your connectivity with this RJ12 patch cable, expertly crafted for Cat3 applications With a generous length of 13 meters, it features a robust impulse withstand voltage of up to 6 kV for reliable performance The cable is encased in a low smoke zero halogen (LSZH) sheath, making it a safe choice for environments that prioritize fire safety Internally, it comprises three pairs of 24 AWG wires, ensuring efficient data transmission across a temperature range of -20 °C to 60 °C.

Additionally, this cable complies with various safety standards, including RoHS, making it an intelligent choice for your networking needs.

Features and Benefits:

    •Low smoke zero halogen (LSZH) sheath.

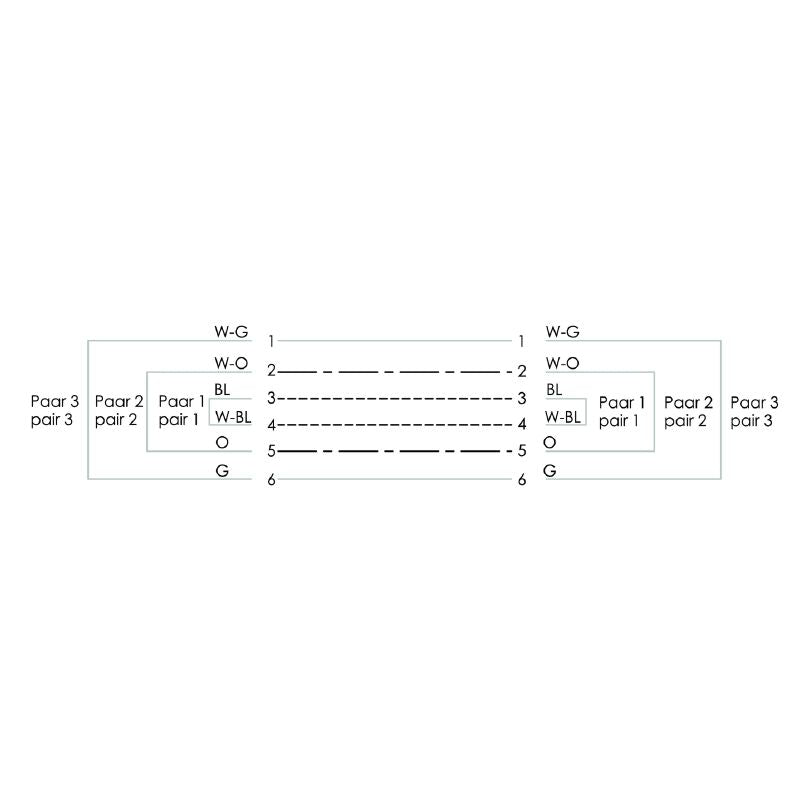

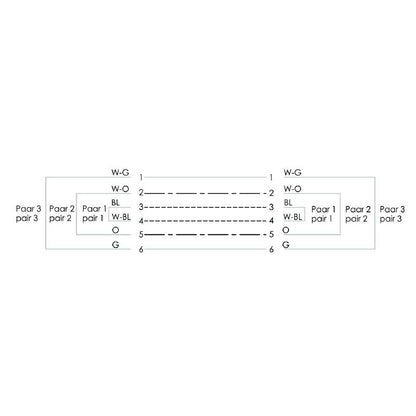

    •Six wire configuration with 24 AWG cross-section.

    •Suitable for application-specific communication facilities.

    •Compliant with multiple standards including VDE-AR-N 4100:2019-04 and TIA-1096-A.

    •Operating temperature range from -20 °C to 60 °C.

Specifications:

 Connector standard TIA-1096-A
 Number of wires 6
 Sheath diameter 4.8 mm
 Sheath diameter, max. 4.95 mm
 Sheath diameter, min. 4.65 mm
 Category Cat.3
 Insulation resistance ≥ 100 MΩ
 Insulation voltage, max. 500 V
 Operating voltage 50 V
 Resistance to spread of flame in accordance with IEC 60332-1
