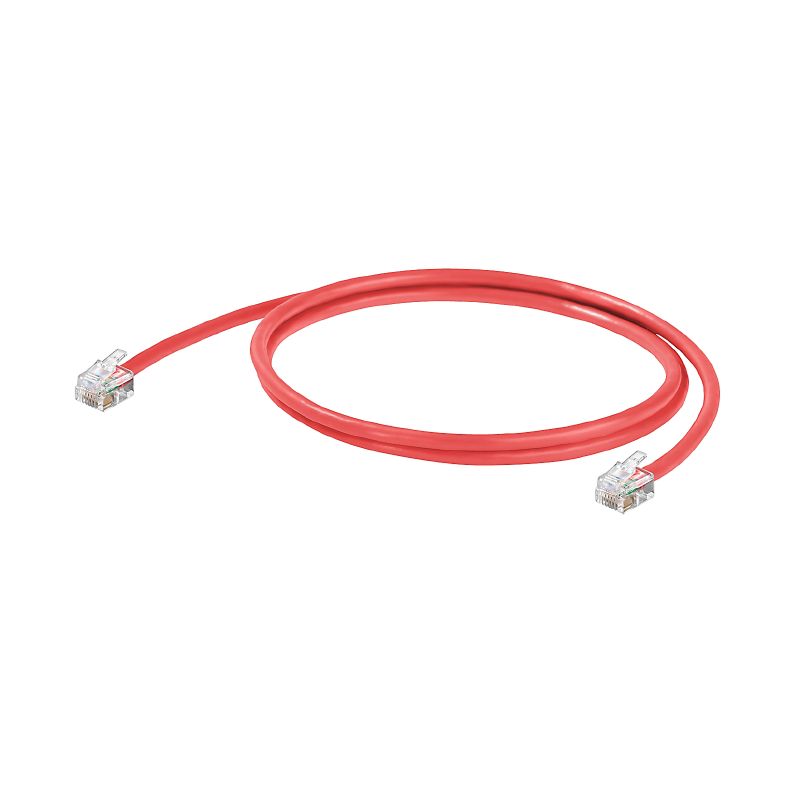

2860910009 - 0.9m RJ12 Cat.3 Patch Cable, LSZH, 6kV Rated

2860910009 - 0.9m RJ12 Cat.3 Patch Cable, LSZH, 6kV Rated

SKU: 2860910009   Download PDF

Select a Variant:
  • 2860910009 - 0.9m RJ12 Cat.3 Patch Cable, LSZH, 6kV Rated
Qty:
Now $12.27   Web pricing policy
BEFORE   $0.00 Now $12.27 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Enhance your connectivity with this RJ12 patch cable, expertly built to meet Cat3 specifications Measuring 09 meters in length, it is encased in a low smoke zero halogen (LSZH) sheath for added safety This reliable cable can withstand impulse voltages of up to 6 kV and features a cross-section design comprising three pairs of AWG 24/7 wires It operates efficiently across a temperature range of -20 °C to 60 °C.

Additionally, it adheres to RoHS regulations to ensure the absence of hazardous substances beyond allowable limits.

Features and Benefits:

    •Compliant with RoHS regulations.

    •LSZH material sheath for safety.

    •Can withstand up to 6 kV impulse voltage.

    •Temperature resistant from -20 °C to 60 °C.

    •Application-specific communication cable facilities.

Specifications:

 Order No. 2860910009
 GTIN (EAN) 4099986760677
 Length 0.9 m
 Length (inches) 35.433 inch
 Operating temperature -20 °C...60 °C

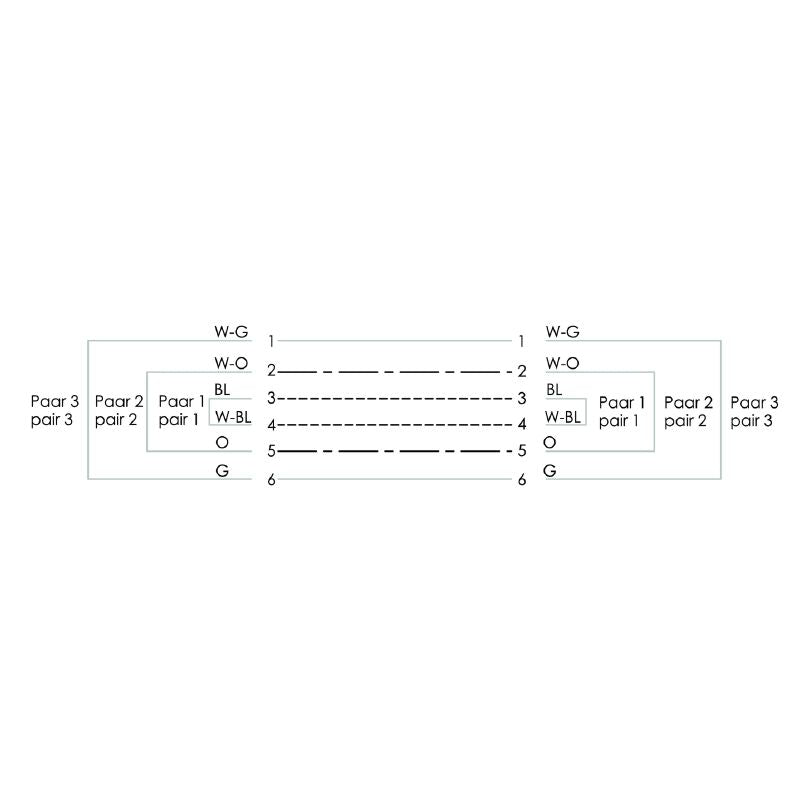

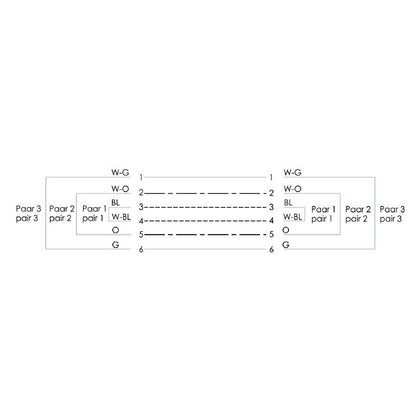

 Number of wires 6
 Sheath diameter 4.8 mm
 Sheath diameter, max. 4.95 mm
 Sheath diameter, min. 4.65 mm
 Category Cat.3
 Insulation resistance ≥ 100 MΩ
 Insulation voltage, max. 500 V
 Operating voltage 50 V

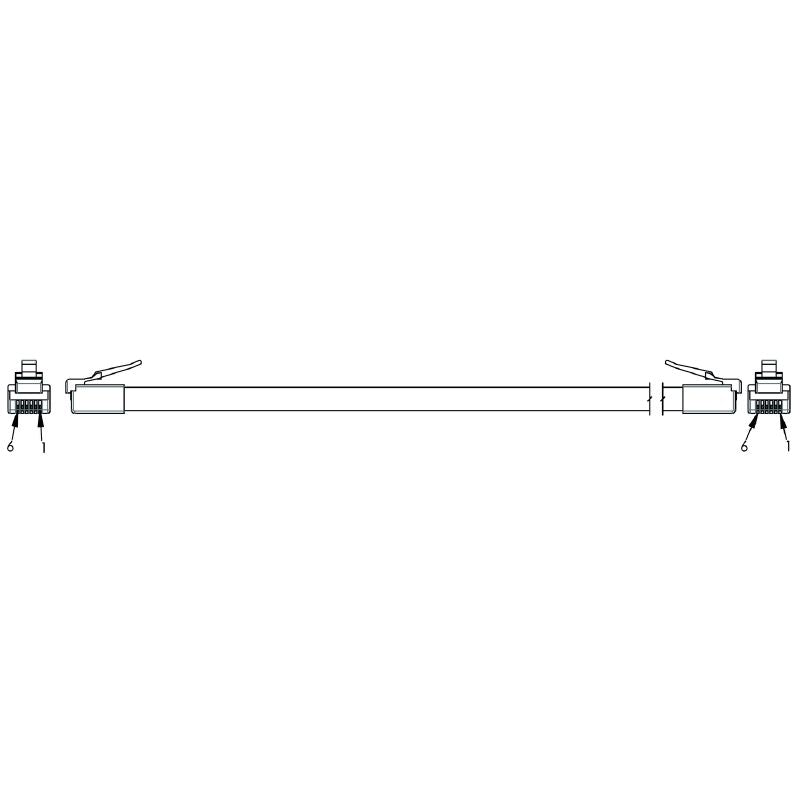

 Plug left RJ12, IP20, male contact, straight, plug, unshielded
 Plug right RJ12, IP20, male contact, straight, plug, unshielded
