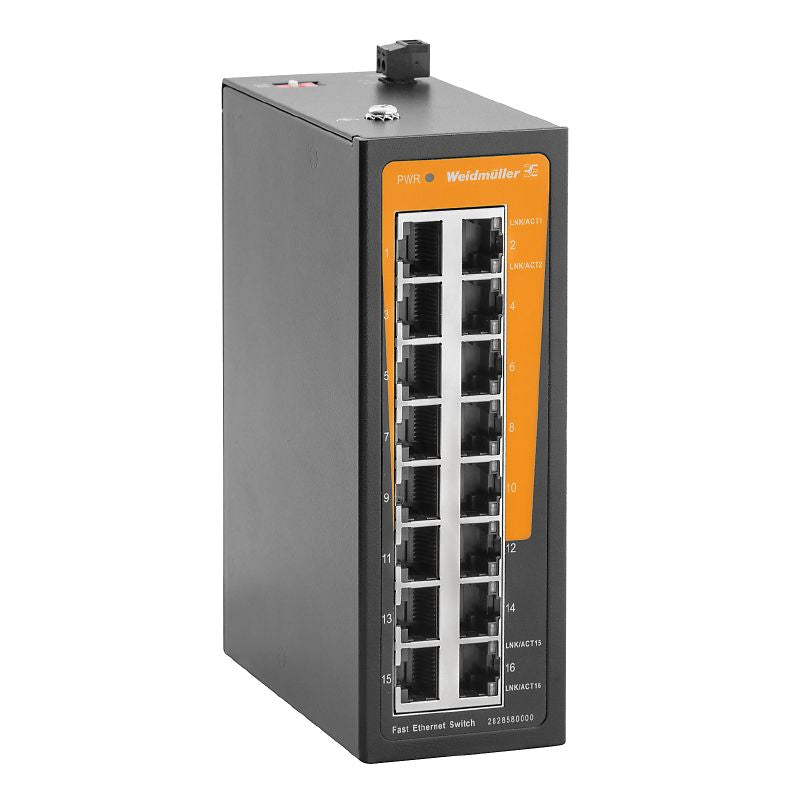

2828580000 - 16-Port Unmanaged Fast Ethernet Switch, IP40 Rated, Compact Design
2828580000 - 16-Port Unmanaged Fast Ethernet Switch, IP40 Rated, Compact Design
SKU: SKU: 2828580000 Download PDF
- 2828580000 - 16-Port Unmanaged Fast Ethernet Switch, IP40 Rated, Compact Design
- 2828580000 - 16-Port Unmanaged Fast Ethernet Switch, IP40 Rated, Compact Design
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Upgrade your network with this 16-port unmanaged switch, equipped with RJ45 ports for Fast Ethernet connectivity It operates efficiently in a temperature range of -10 °C to 60 °C and meets several essential standards, including RoHS and UL certifications Constructed with an IP40 level of protection, this robust device measures 110 mm in depth, 143 mm in height, and 50 mm in width, with a total weight of 526 g.
Perfect for a wide range of industrial applications, it also supports quality of service (QoS) features to enhance performance.
Features and Benefits:
•Supports 16x RJ45 ports.
•Compliant with RoHS and UL safety standards.
•IP40 protection degree.
•Ambient temperature range from -10 °C to 60 °C.
•Ethernet switching for data transfer.
Specifications:
| Depth | 110 mm |
| Height | 143 mm |
| Width | 50 mm |
| Net weight | 526 g |
| Operating temperature | -10 °C to 60 °C |
| Storage temperature | -40 °C to 85 °C |
| Humidity | 5 to 95 % (non-condensing) |
| Bandwidth backplane | 3.2 Gbit/s |
| MAC table size | 8 K |
| Packet buffer size | 4 Mbit |
| Power supply voltage | 12/24/48 V DC, 24 V AC |
| Protection degree | IP40 |
| Housing main material | Metal |
| Network protocol support | IEEE 802.3, IEEE 802.1p |
