Description:

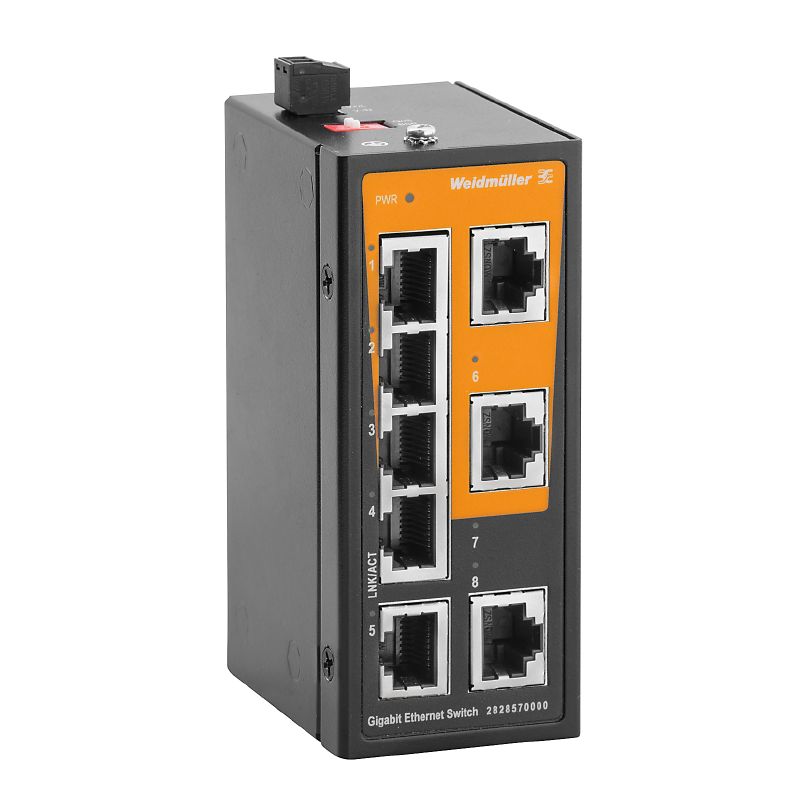

Enhance your networking capabilities with this unmanaged Gigabit Ethernet switch, featuring 8 RJ45 ports Built for high performance in IP40-rated environments, this device operates efficiently in temperatures ranging from -10 °C to 60 °C It meets RoHS compliance standards and has received several EMC approvals for reliable operation The compact design measures 64 mm deep, 103 mm tall, and 435 mm wide, while weighing just 195 g, making it both functional and easy to integrate into your existing setup.
Order number: 2828570000.
Features and Benefits:
•Complies with RoHS and other environmental standards.
•Up to 16 Gbit/s backplane bandwidth.
•Supports jumbo frames up to 9 KB.
•Includes indicators for power and port activity.
•DIN rail mountable.
Specifications:
| Number of ports | 8x RJ45 |
| Operating temperature | -10 °C...60 °C |
| Storage temperature | -40 °C...85 °C |
| Protection degree | IP40 |
| Power supply | 12/24/48 V DC; 24 V AC |
| Current consumption | 0.21 A |
| MTBF | 443,524 hours |
| Bandwitdh backplane | 16 Gbit/s |
| MAC table size | 4 K |
| Packet buffer size | 1.5 Mbit |
| Priority queues | 2 |
| Housing main material | Metal |
| Environmental compliance | Compliant with exemptions |
| Safety standard | UL 61010-1 and UL 61010-2-201 |
