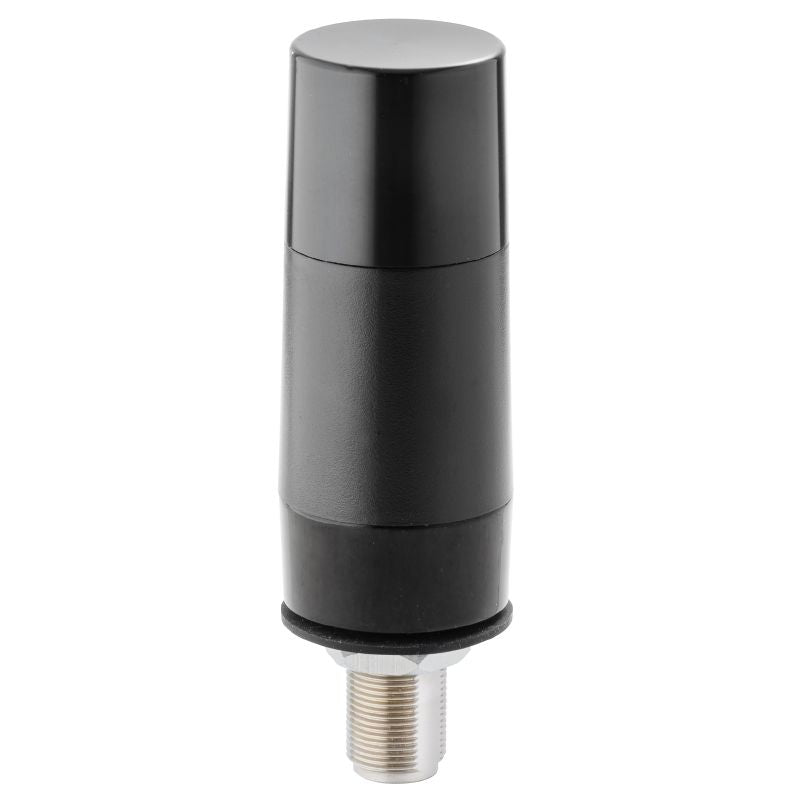

2788150000 - IP66 Omni-Directional Antenna for 5G with N Female Connector
2788150000 - IP66 Omni-Directional Antenna for 5G with N Female Connector
SKU: SKU: 2788150000 Download PDF
- 2788150000 - IP66 Omni-Directional Antenna for 5G with N Female Connector
- 2788150000 - IP66 Omni-Directional Antenna for 5G with N Female Connector
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Experience superior connectivity with this omni-directional antenna, expertly crafted for cellular frequencies with support for up to 5G (NR) Its design incorporates vertical polarization and features an N female connector for easy setup Rated IP66, this antenna is resilient enough for harsh environments, and with an impedance of 50 Ω, it delivers optimal performance Additionally, it meets RoHS compliance standards, promoting a safer environment.
Each package includes one antenna, ensuring you have everything you need for installation.
Features and Benefits:
•Omni-directional design.
•Compliant with RoHS regulations.
•IP66 rated for environmental protection.
•Includes one antenna.
Specifications:
| Antenna gain | 3 dBi |
| Composite power max. | 150 W |
| Frequency range | 690-950 MHz, 1.7-3.8 GHz |
| Impedance | 50 Ω |
| Polarisation | Vertical |
| Standing wave ratio | < 2.0 typical, 2.5 max. |
| Type of connection | N female |
| Operating temperature, max. | 70 °C |
| Operating temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Storage temperature, min. | -40 °C |
