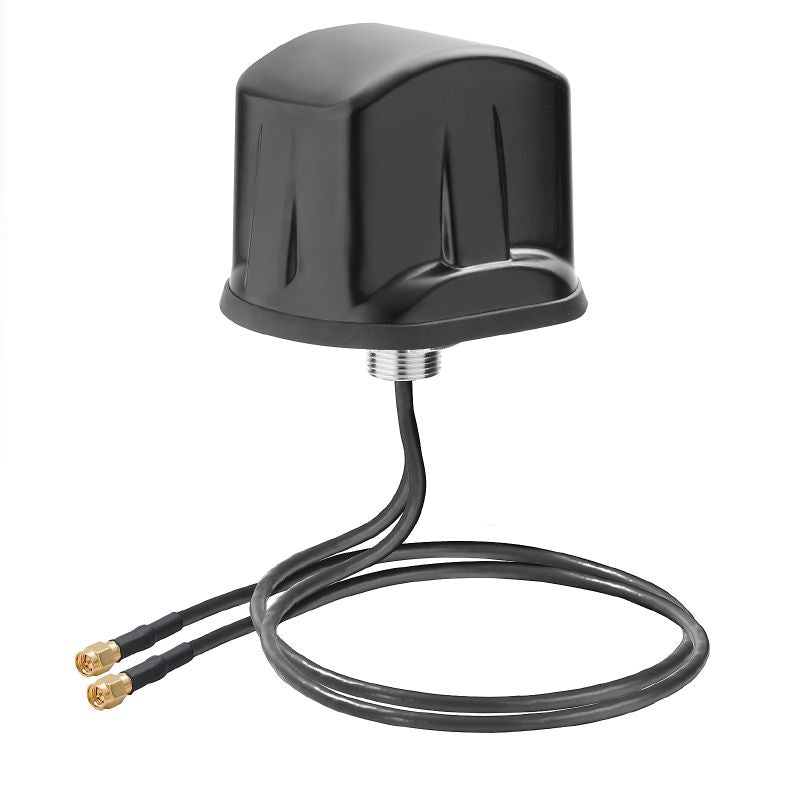

2788120000 - IP67 Rated Omni-Directional 5G Cellular Antenna with SMA Connectors
2788120000 - IP67 Rated Omni-Directional 5G Cellular Antenna with SMA Connectors
SKU: SKU: 2788120000 Download PDF
- 2788120000 - IP67 Rated Omni-Directional 5G Cellular Antenna with SMA Connectors
- 2788120000 - IP67 Rated Omni-Directional 5G Cellular Antenna with SMA Connectors
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Upgrade your connectivity with this omni-directional cellular antenna, expertly designed for 5G (NR) applications It boasts a streamlined linear vertical structure and comes with two SMA male connectors for easy installation With an IP67 rating, this antenna is resistant to dust and can withstand immersion in water Its 50 Ω impedance ensures optimal performance, and rest assured, it meets RoHS standards for environmental safety.
Features and Benefits:
•Compliant with RoHS exemption.
•Operating temperature range of -40 °C to 85 °C.
•Lightweight at 463 g.
•Includes 1 antenna in the delivery.
Specifications:
| Height: | 100 mm (3.937 inch) |
| Cable length: | 1 m |
| Min. bending radius, repetitive: | 25 mm |
| Amount of antenna elements (MIMO): | 2 |
| Antenna gain: | 2.5 dBi |
| Composite power max.: | 50 W |
| Frequency range: | 690-950 MHz, 1.7-3.8 GHz |
| Impedance: | 50 Ω |
| Polarisation: | Linear, Vertical |
| Standing wave ratio: | <2.0 typical, 3.0 max. |
| Type of connection: | 2x SMA male |
| Environmental conditions - Operating temperature, max.: | 85 °C |
| Environmental conditions - Operating temperature, min.: | -40 °C |
| RoHS Exemption: | 6c |
| REACH SVHC: | Lead 7439-92-1 |
| SCIP: | e4cad7fc-a55e-4d5c-8f05-417a6385e9b6 |
